TK36
Tethered High-Power System
High-Power Tethered Operation, Strong Expandability
Product Overview

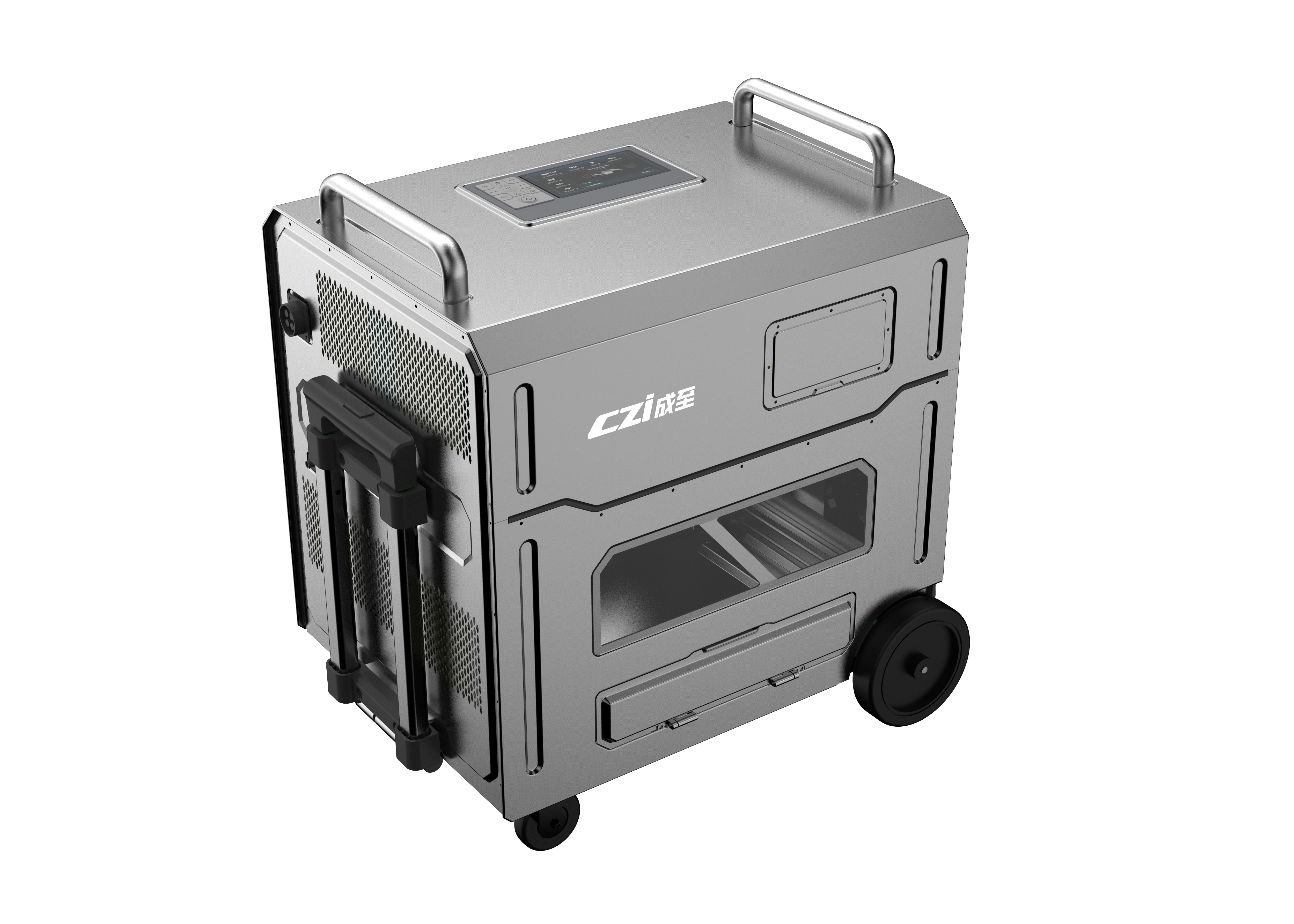

The CZI TK36 Tethered High-Power System
is a high-performance tethered system designed for heavy-lift drones with a takeoff weight of 40–150 kg. It is built to meet the needs of long-duration continuous operations in scenarios such as high-rise building firefighting, cleaning, and other demanding applications. With advanced high-efficiency power conversion technology, the system converts 380 V AC power into 1500 V high-voltage DC power, which is transmitted to the drone through the tether cable. It provides powerful and sustained energy support for the drone’s propulsion system, enabling heavy-lift drones to operate steadily for extended periods.
Stable Power Supply
- 1500 V high-voltage power supply - 80 kW ground power output - Compatible with 40–150 kg class drones
Smart and Safety
- Supports ground station control via mobile app - Automatic detection and notification of remaining cable length - Dual speakers for real-time voice interaction
Reliable and Durable
- Aluminum alloy housing, strong and lightweight - Designed for harsh working environments - Removable backup battery
Multi-Port Expansion
- LAN port supports internet access - USB-A port for software upgrades or Wi-Fi internet access
Specs
Overall parameters
Model
TK36
Ground Station
Dimensions
605 × 530 × 455 mm (main body only, excluding handle and stand)
Weight
59 kg
Input Voltage
260-530 VAC (three-phase power)
Output Voltage
1000-1500 VDC
Output Power
80 kW
Backup Battery Capacity
2600 mAh 44.4 V
Cable Length
Standard 110m (customizable, max 250m)
Material
Aluminum alloy
IP Rating
IP44
