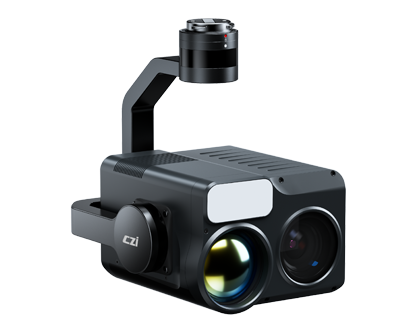

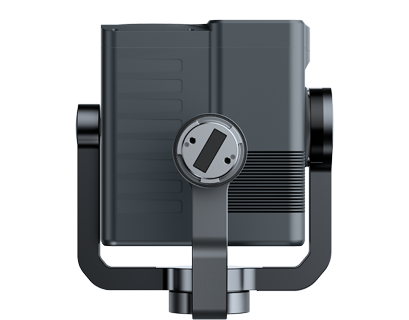

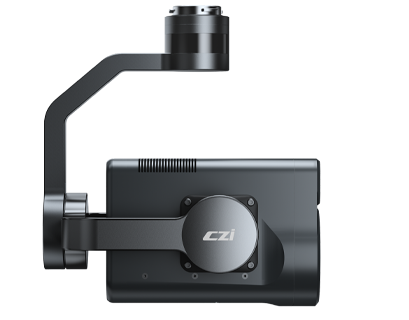

C30N Appearance
Specs
Overall parameters
Model
C30N
Dimension
173x152x191mm
Weight
≤1510g±10g
Supported models
Matrice 300 RTK/Matrice 350 RTK/Models from
other manufacturers
Gimbal parameter
Gimbal jitter
±0.01°
Installation mode
Detachable
Controllable rotation range
Translation：±85°,pitch：-120°至 +30°
Structural control range
Translation：±100°,pitch：-132.5°至 +42.5°
roll：-90°至 +60°
Maximum controllable speed
Translation：50°/s,pitch：50°/s
Zoom camera
lmage sensor
1/1.8"CMOS
Lens
Aperture: f/1.6f/14
Focus mode
AF/MF
Exposure mode
Manualexposure,automatic exposure in program
Exposure compensation
±7.0 (with steps of L5dB)
Metering mode
Spot metering
Electronic shutter speed
Photo shooting：1-1/10000s
Videos:1/1-1/10000s
Video resolution
1920x1080@30fps
Video format
MP4
Maximum photo size
1920x1080
Photo format
JPEG
Long-focus infrared camera
Thermal imaging sensor
Non-cooled Vanadium oxide (VOx) infrared focal plane detector
Sensor dimensions
15.36mm(W)*12.28mm(L)
Lens
DFOV:20.1°
Equivalent multiple of digitalzoom
4x 8x 16x 32x
Video resolution
1280x1024@30fps
Video format
MP4
Photo resolution
1280x1024
Photo format
JPEG
Pixel spacing
12 um
Wavelength coverage
8-14 um
Sensitivity (NETD)
≤50 mK @ f/1.0
Temperature measurement methods
Regional temperature measurement
Temperature Range
-20-150°C (The distance varies in different ranges)
Color palette
White heat/Lava/lron red/Hot iron/Medical / Arctic/Rainbow 1/Rainbow 2 /Painted red / Black heat
Laser rangefinder
Wavelength coverage
905nm
Measurement accuracy
<400m ± 1m > 400m ±0.4%
Measurement range
10-1200m
Laser supplementary light
Wavelength coverage
850nm
Light output power
≥2W(±0.5W)
Light output angle
3°
Operating range
>400m
Storage
Memory card type
Support microSD card with maximum capacity of'128 GB and transmission speed reaching
UHS-I Speed Grade 3.
File storage system
exFAT
