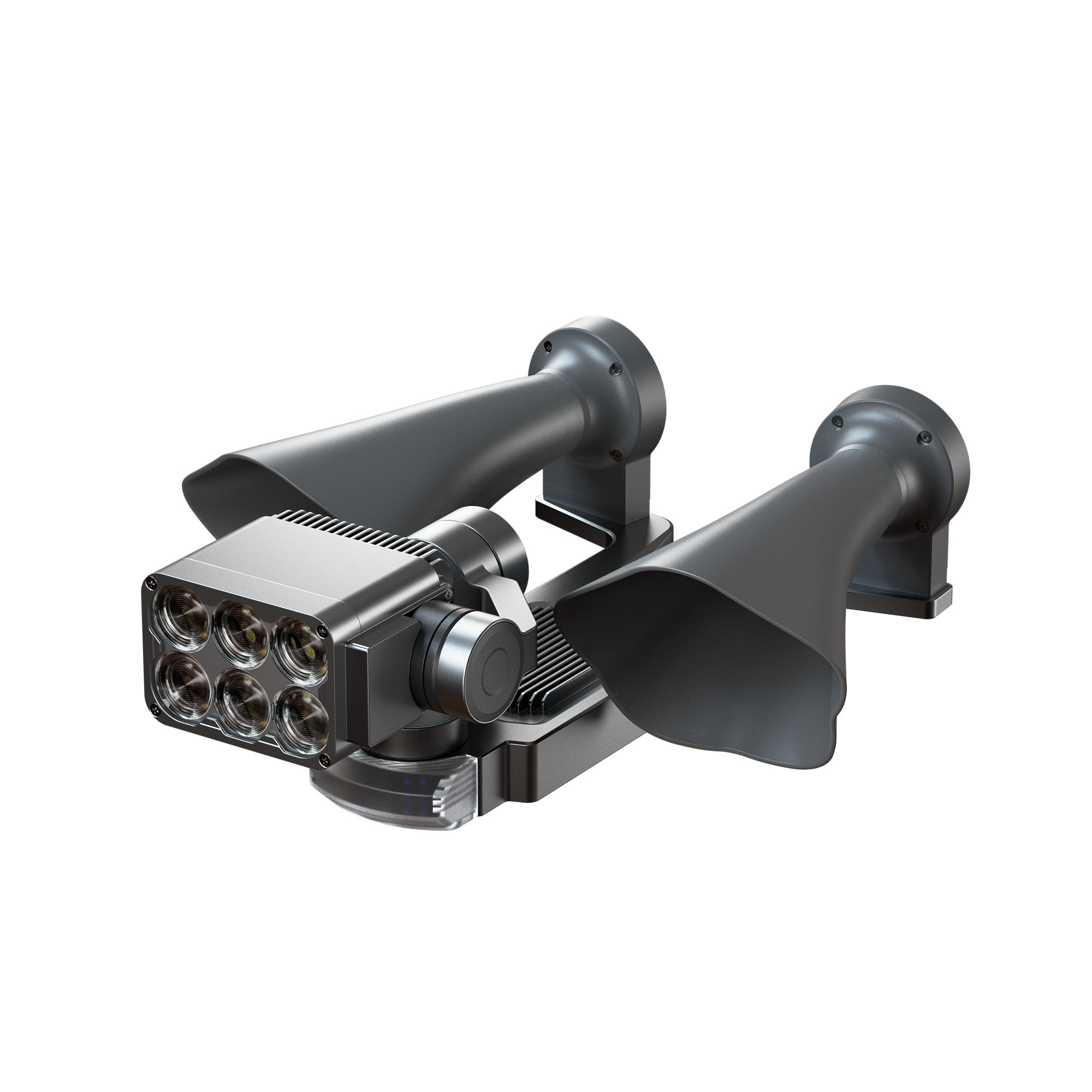

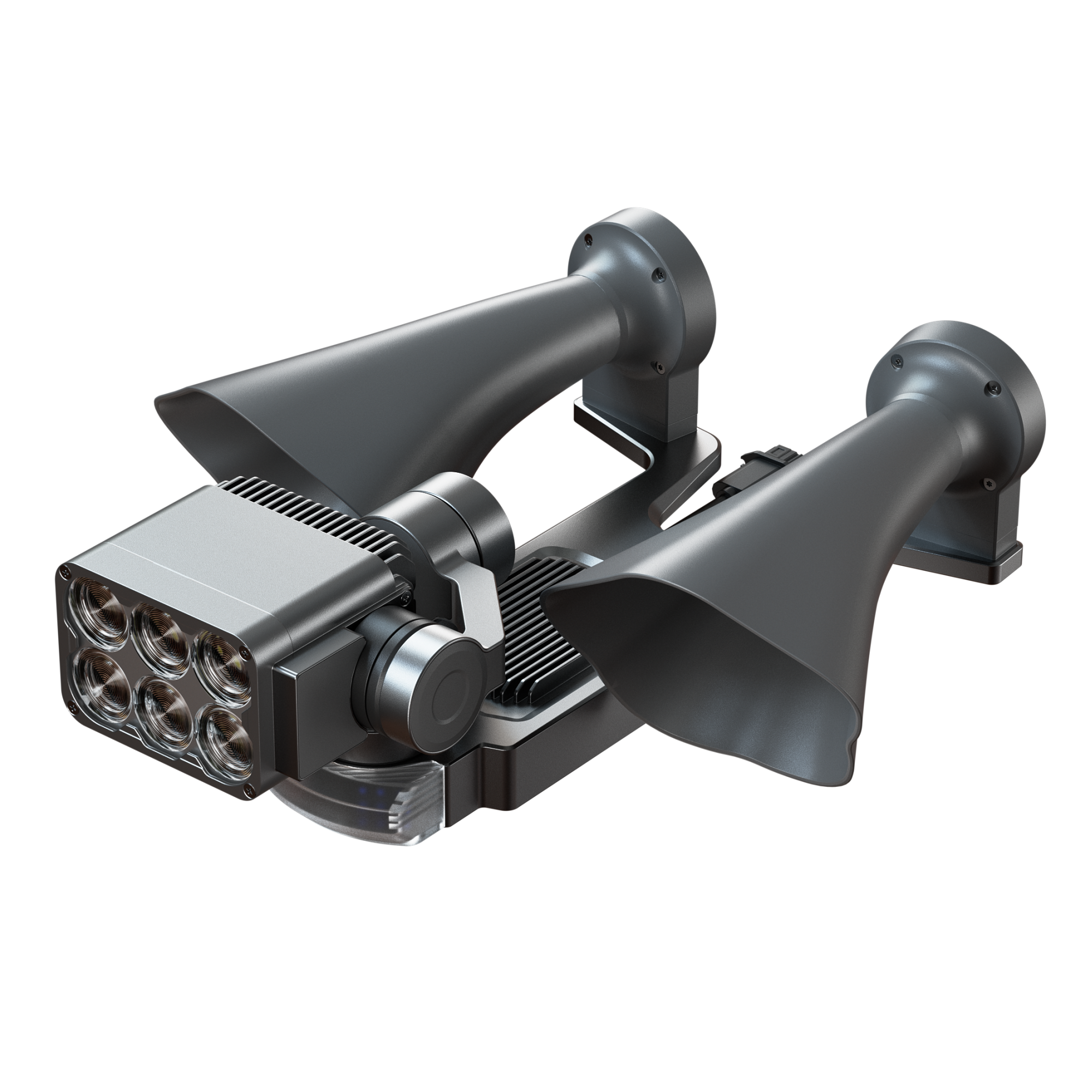

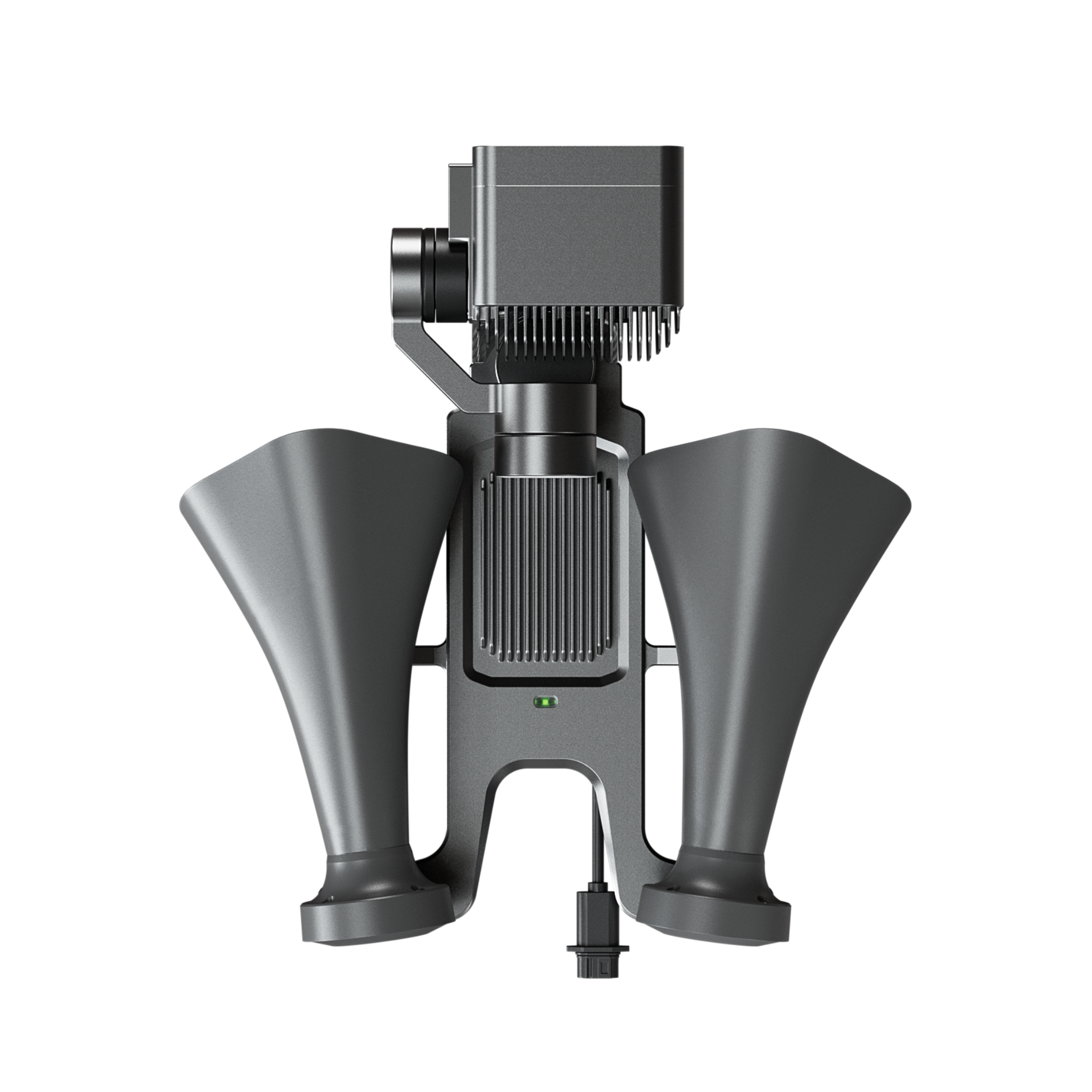

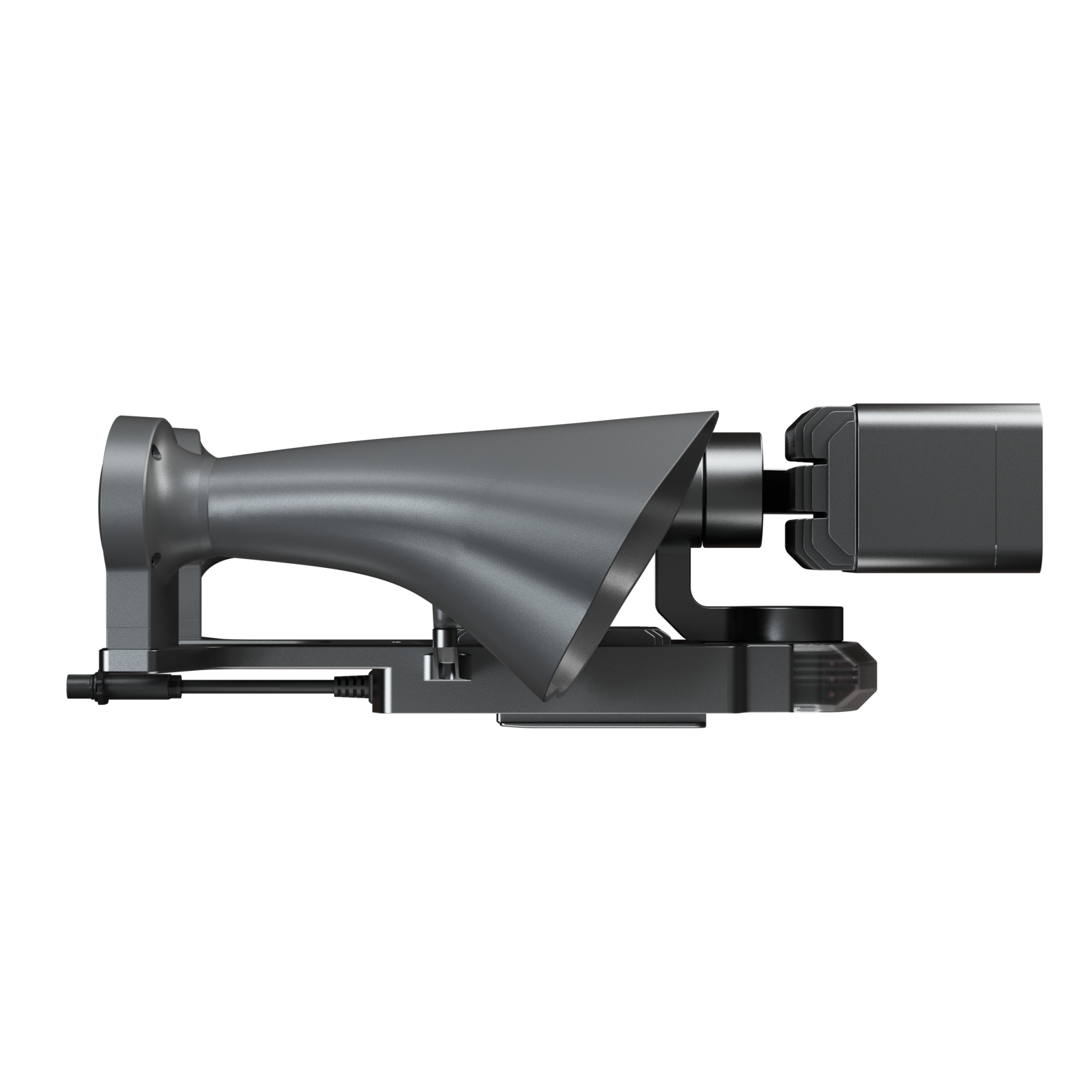

LP35appearance
Product information
技术参数
Model
LP35
Dimensions/mm
L235*W220*H85
Weight/g
≤550
Total power/w
96(max)
Electrical interface
DJI OSDK
Bluetooth Protocol
Bluetooth v4.2 BR&EDR and Bluetooth Low Energy
Bluetooth operating frequency band/MHz
2400‒2483.5
Operating temperature /℃
-20～+50
Flashing light mode
Red and blue blinking, Red blinking, blue blinking
Visual distance of flashing light
200m
Broadcasting sound pressure
126dB@1m
Maximum power of Broadcasting/W
30
Effective broadcasting distance
400m
Broadcasting method
Live broadcasting
Recording upload
Audio file playback (audio format MP3)
Text converted to voice playback (supports text recording)
Light flux of searchlight/lm
6000±3%
Searchlight FOV/°
13
Central illuminance/Lux
6.3 | 14.4 | 57
Illumination distance/m
150 | 100 | 50
Spot diameter/m
34 | 22.8 | 11.4
Illumination area/m2
917 | 407 | 102
Searchlight LED power/W
60
Range of rotation of the gimbal
Pitch ＋55°～－65°
Level ±35°
Roll ± 25 °
Searchlight functions
Normally on
Flashing
Adjusting brightness
Adjusting the gimbal angle
Automatically following camera
AI spot centered
Drone platform support
M350
APP support
czi Pilot
DJI Pilot
czi Audio (Android)
czi Assistant (PC)
