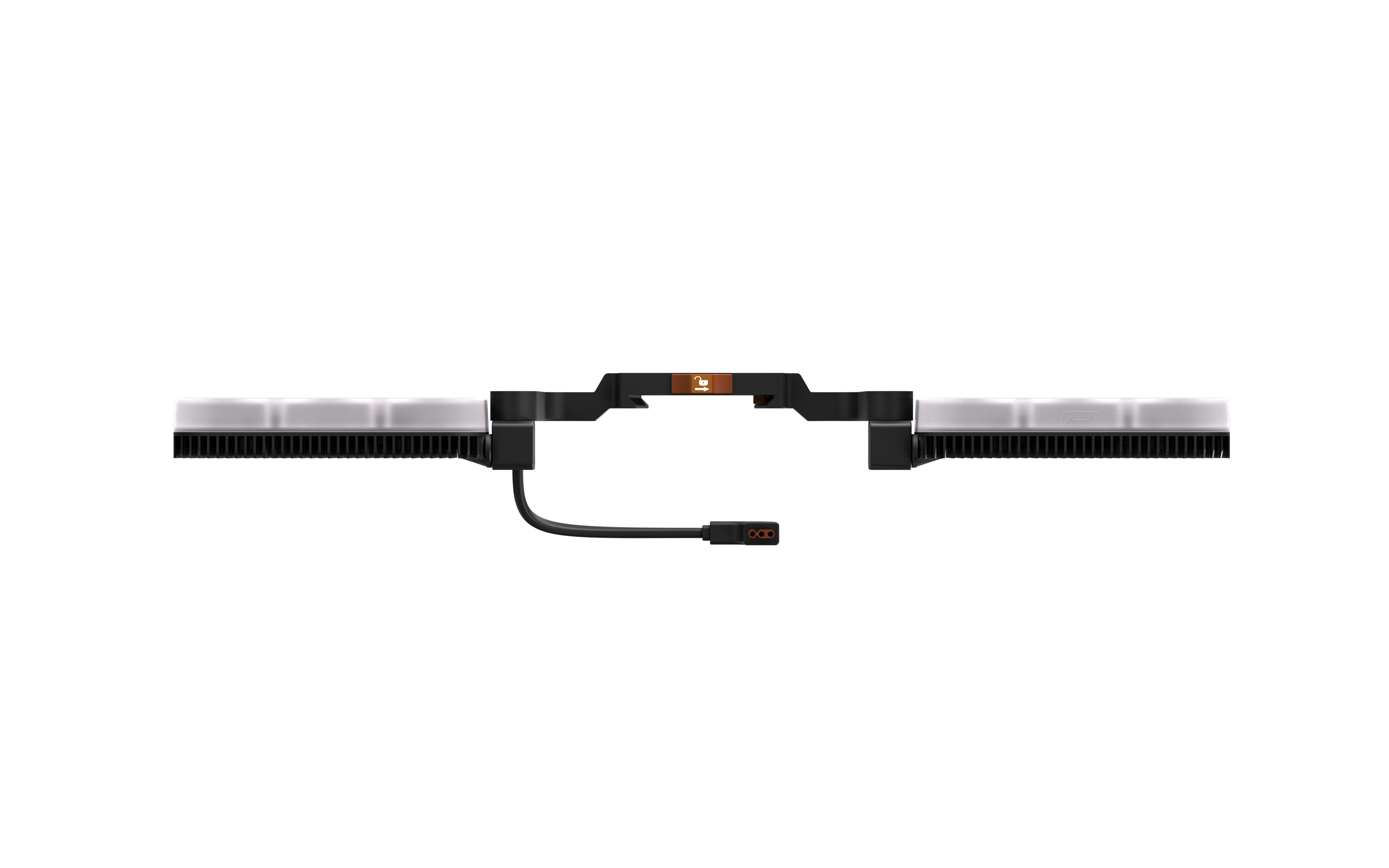

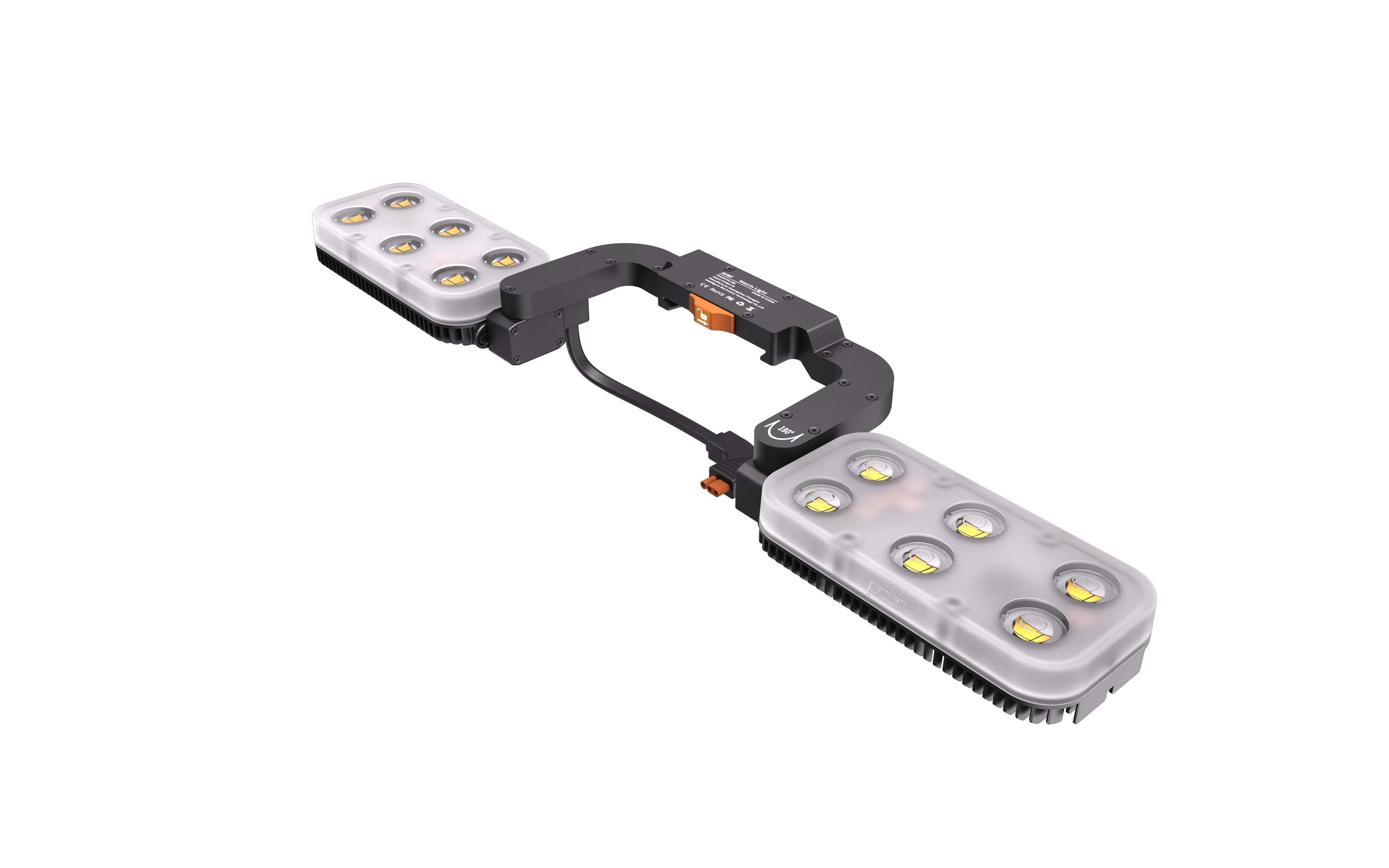

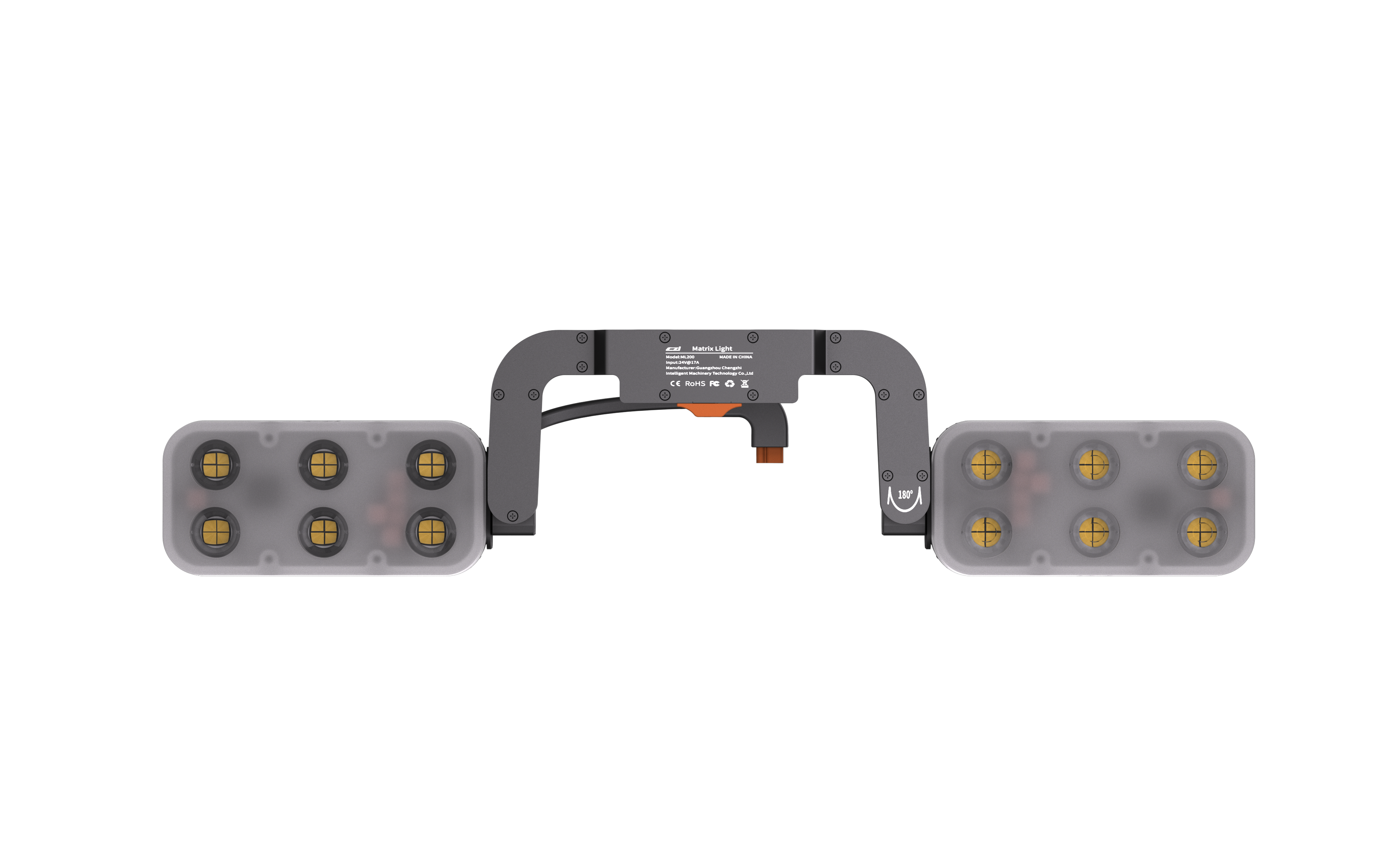

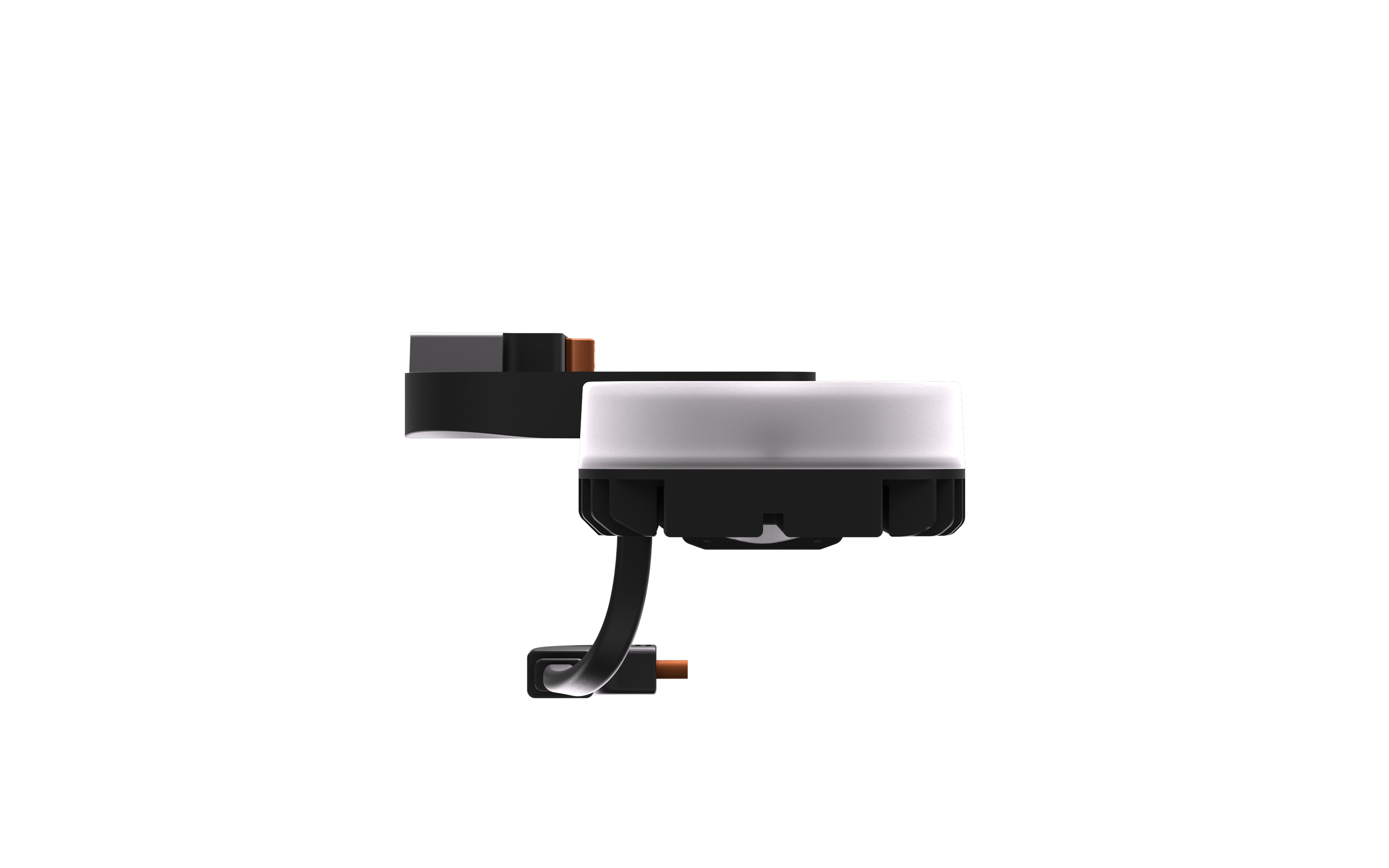

ML200appearance
Product information
Overall parameters
Model
ML200
Dimensions / mm (Unfolded)
L:406 x W:96 x H:38
Dimensions /mm (folded)
L:285 x W:96 x H:38
Installation method
Fast detachable
Longitudinal angle adjustment of the lamp body
Three-speed manual，-15°， 0° ，+15°
Lateral adjustment of the lamp body
Manual two-position, 0° ,+180°
Total weight /g
≤440g
Rated voltage /V
24
Total power /W (ambient temperature: ≤25℃)
400 ± 10%
Total luminous flux /lm (Ambient temperature: ≤25℃)
42900 ± 10%
Luminous efficacy /(lm/W)
110
FOV /°
60±3
Luminous efficacy /(lm/W)
30m
Area of the light spot / m² (with 5 lx as the illuminance at the edge of the light spot)
2000±5%
Illuminance at the center of the light spot /lx (ambient temperature: ≤25℃)
40±5%
Protection Class
IP54
Work setting
Temperature: -20°C to +50°C
Humidity: 15% to 95%
Storage conditions
Temperature: -20°C to +60°C
Humidity: 15% to 95%
