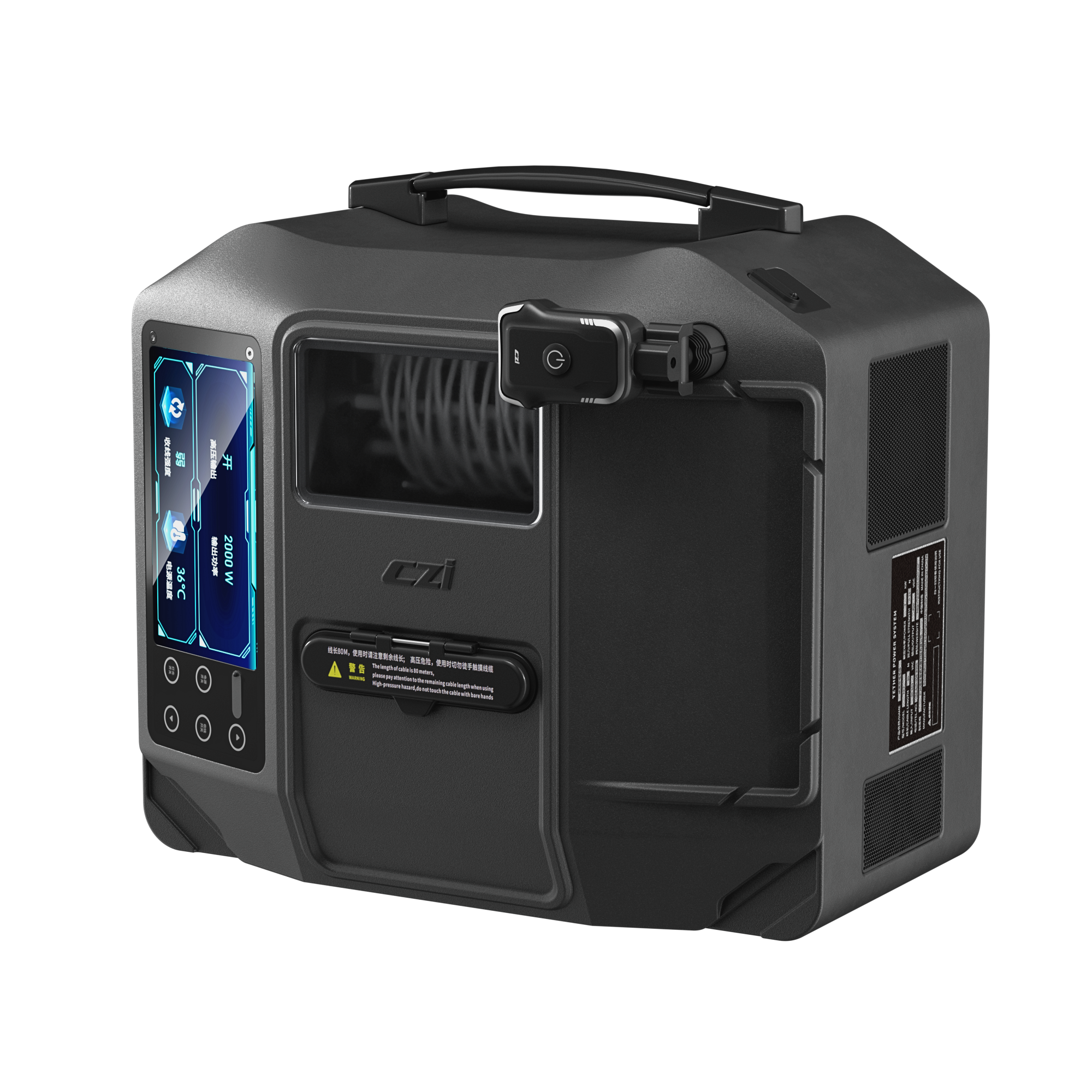

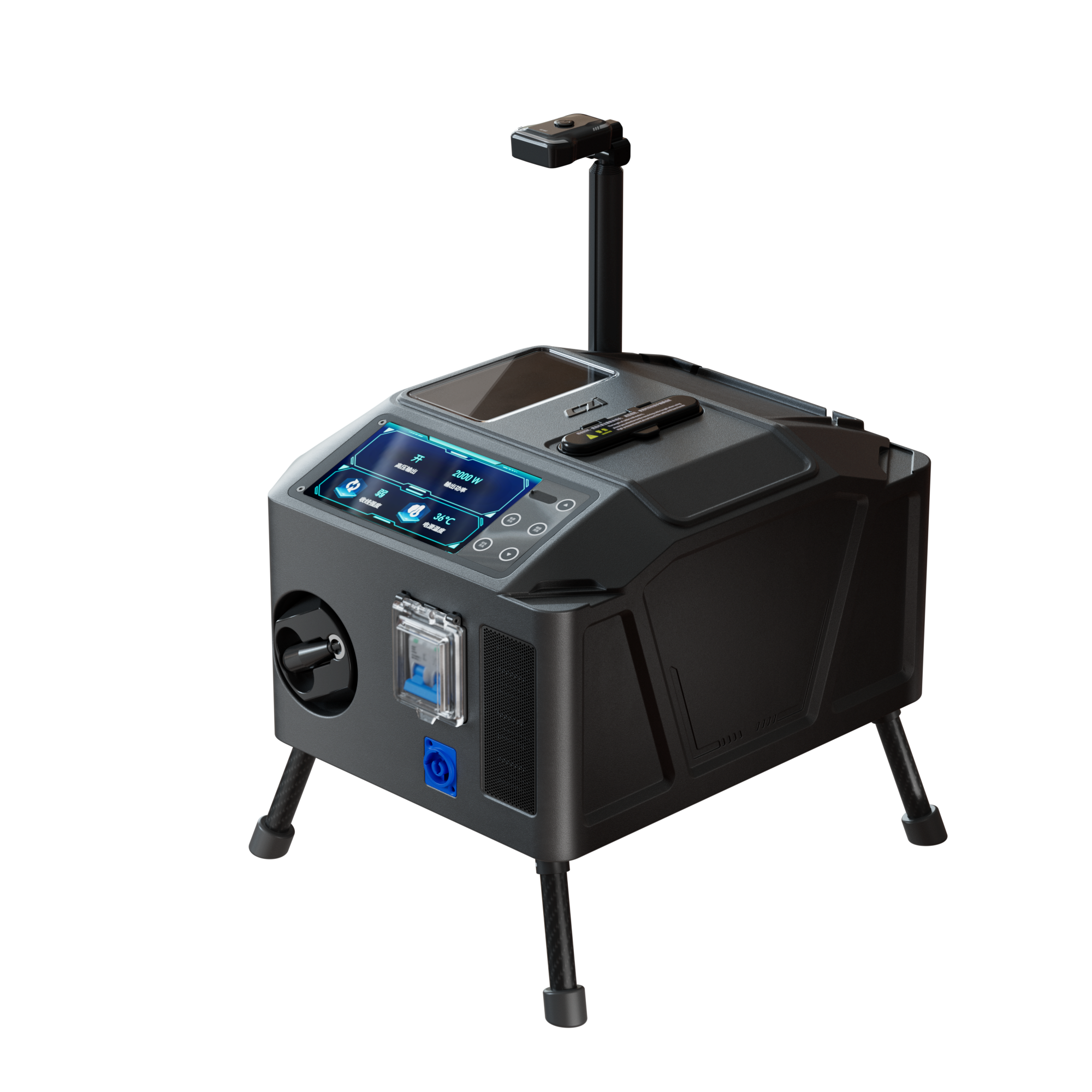

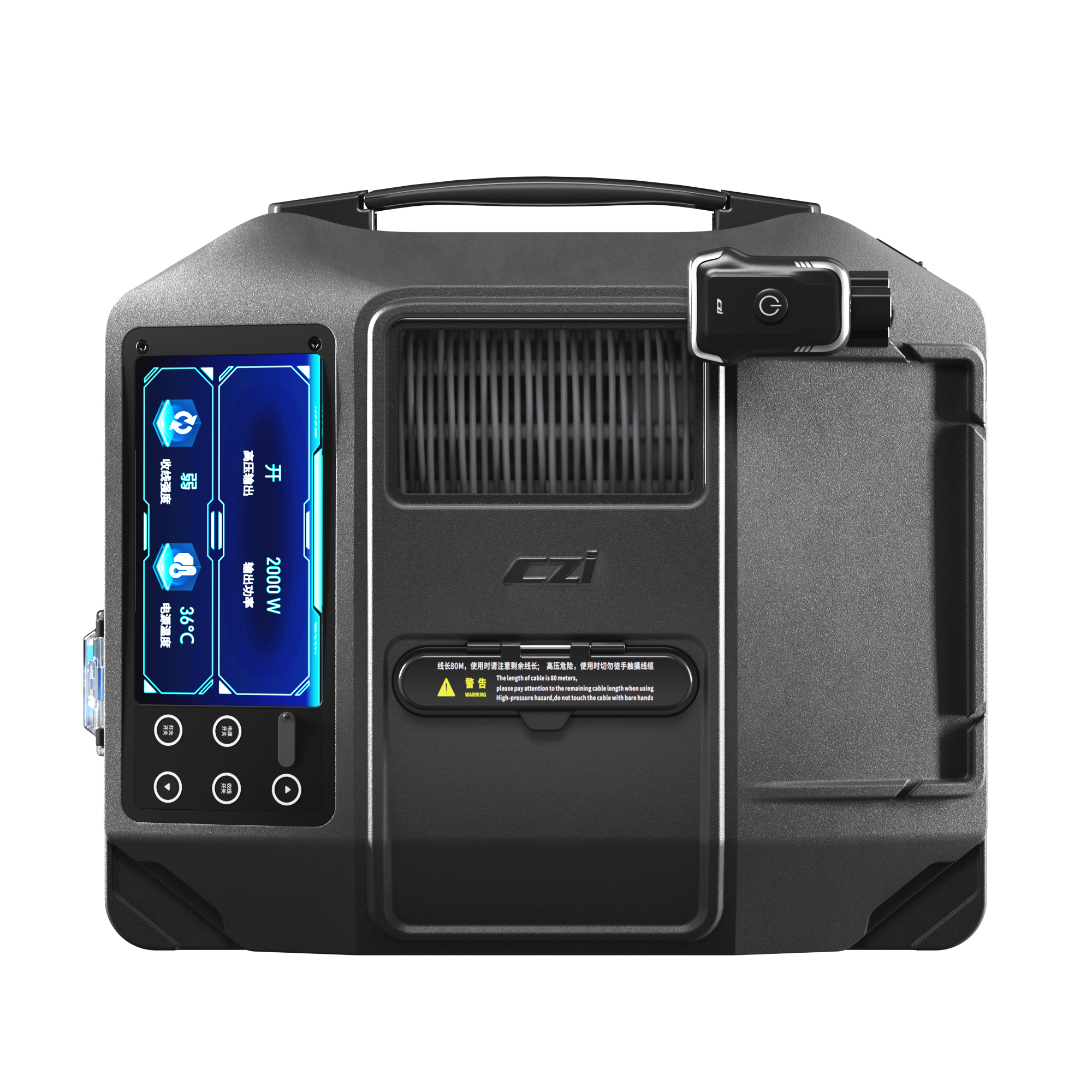

TK3 Appearance
Specs
Overall parameters
Model
TK3
Ground Station
Dimensions
356x310x229 mm
Weight
7.5±5% kg
Power
≥ 3000 W (AC 176V-AC 264V input)
≥ 1500 W (AC 90V-AC 175V input)
Cable(compatible with M30/M300/M350)
Length: 80 m
Diameter: < 2.8 mm
Current Capacity: > 10 A
Weight: 12 ±1 g/m
Tensile Strength: > 200 N
Input Voltage
AC90V-AC264V
Operating Frequency
50/60 Hz
Output Voltage
≥ DC400V
Operating Temperature
-20°C to 40°C
Cable(compatible with M4E/T and M4D/TD)
Length: 50 m
Diameter: < 2.2mm
Current Capacity: > 1.5A
Weight: 0.65kg/100m
Tensile Strength: >100N
TK3-M350 Airborne Unit
Dimensions
166x91x69 mm
Weight
566±5% g
Power
≥3000 W
Input Voltage
DC400V
Output Voltage
≥DC45V
Output Current
≥60 A
TK3-M30 Airborne Unit
Dimensions
150×59×81 mm
Weight
320±5% g
Power
≥1500 W
Input Voltage
DC400V
Output Current
≥60 A
Output Voltage
≥DC22V
TK3-M4E/T Airborne Unit
Overall Dimensions
175x95x60 mm (L-shaped structure)
weight
530g
power
Max 600W
Rated input voltage
300-420VDC
Rated output voltage
16±1VDC
Main rated output current
38A
TK3-M4D/TD Airborne Unit
Overall Dimensions
188x109x125 mm (L-shaped structure)
weight
900g
power
≥ 600W (rated long-term output), ≥ 800W (peak value of 10s)
Rated input voltage
350-410VDC
Rated output voltage
24±1VDC
Main rated output current
35A
