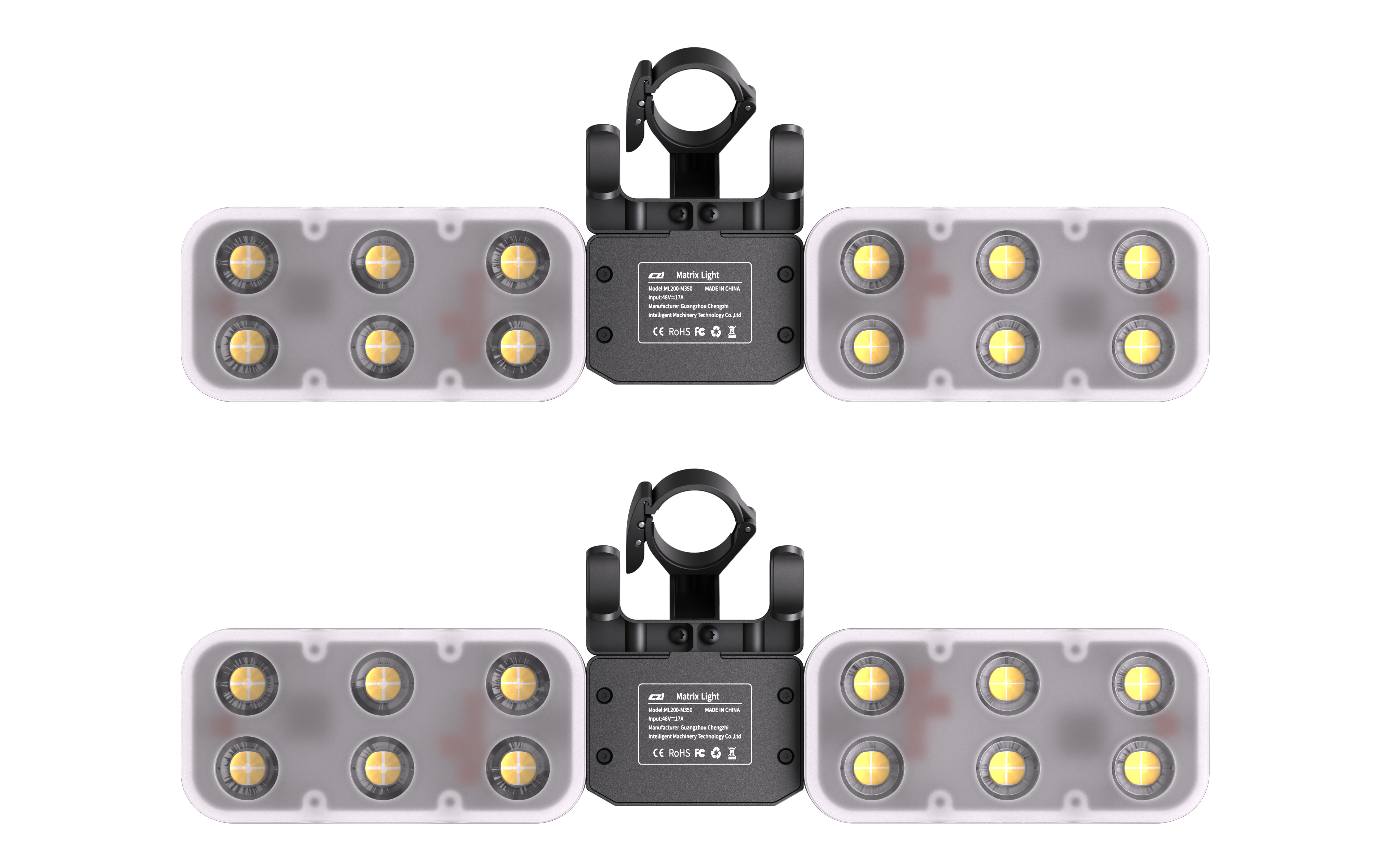

ML200-M350appearance
Product information
Overall parameters
Model
ML200-M350
Dimensions /mm
L:304.5 x W:106.5 x H:52.7
Installation method
Fast detachable
Lamp head angle adjustment
None
Total weight /g
＜1000
Rated voltage /V
DC48
Total power /W (ambient temperature: ≤25℃)
800 ± 10%
Total luminous flux /lm (Ambient temperature: ≤25℃)
85360 ± 10%
Luminous efficacy /(lm/W)
110±10%
Illumination distance
50 40 30
Area of the light spot / m² (with 5 lx as the illuminance at the edge of the light spot)
4300±4%
3632±4%
2463±4%
Illuminance at the center of the light spot /lx (ambient temperature: ≤25℃)
30±10% 45±10% 75±10%
Protection Class
IP55
Work setting
Temperature: -20ﾰC to +50ﾰC
Humidity: 15% to 95%
Storage conditions
Temperature: -20°C to +60ﾰC
Humidity: 15% to 95%
