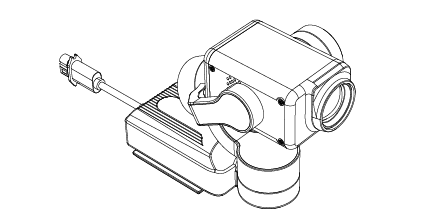

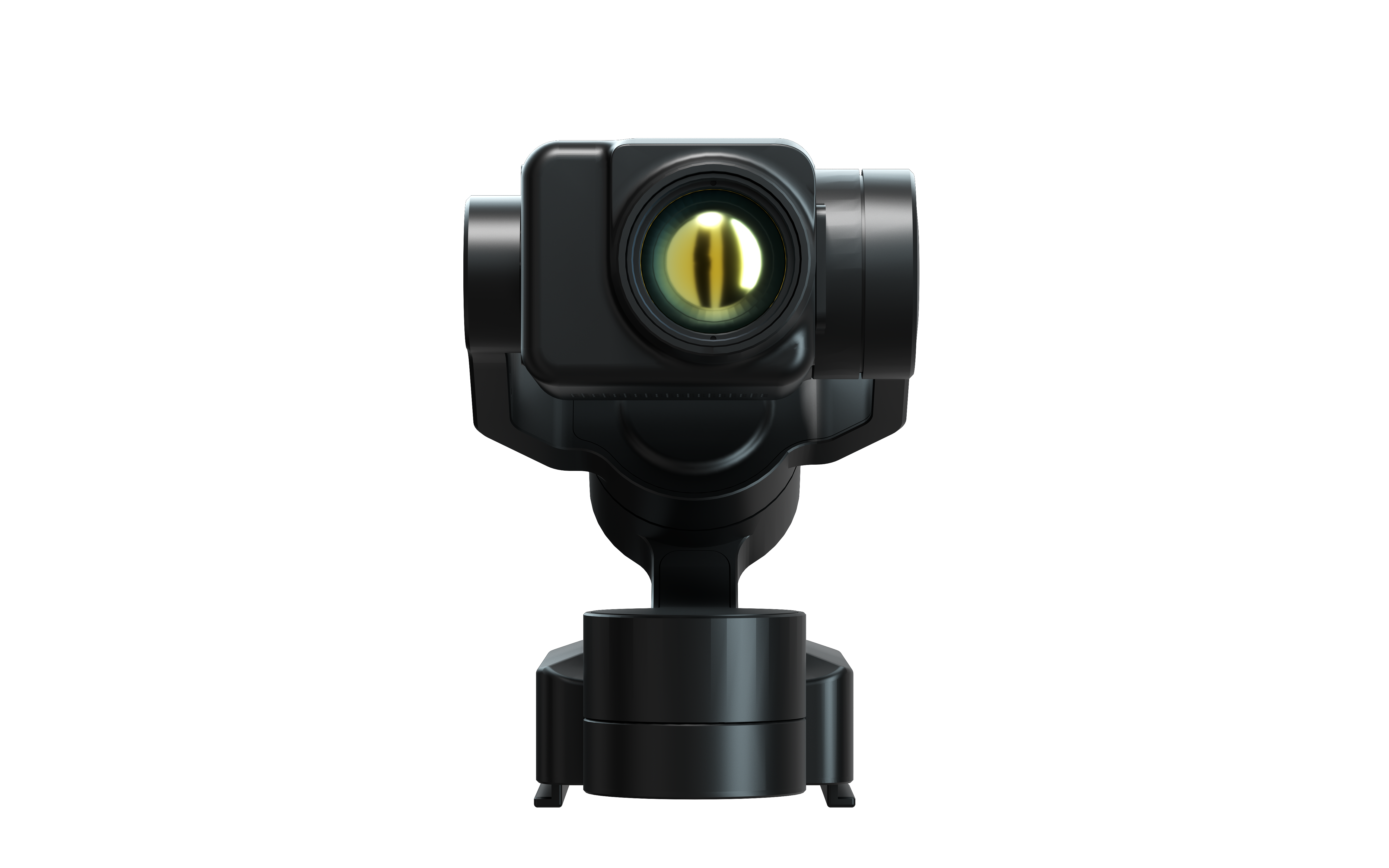

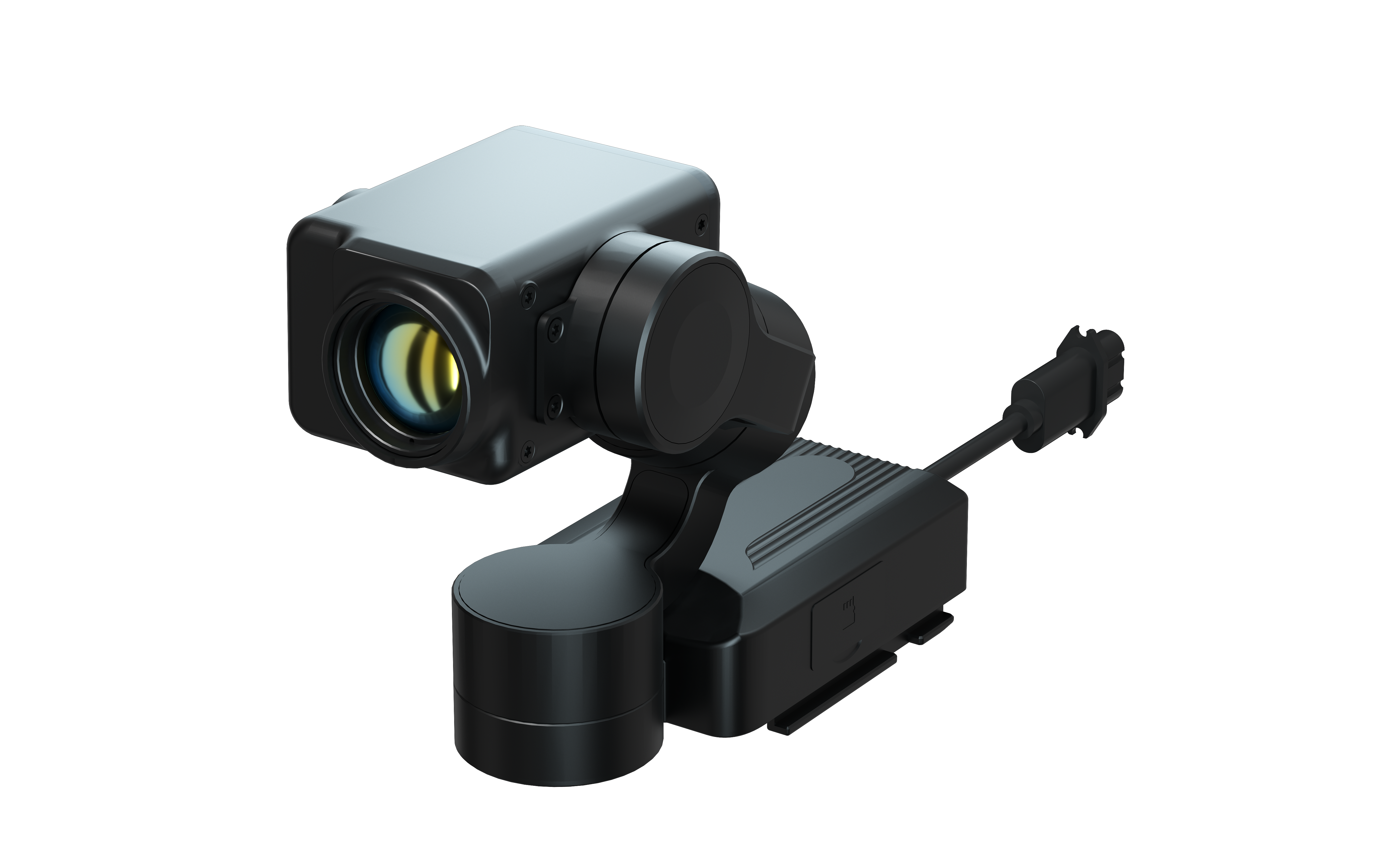

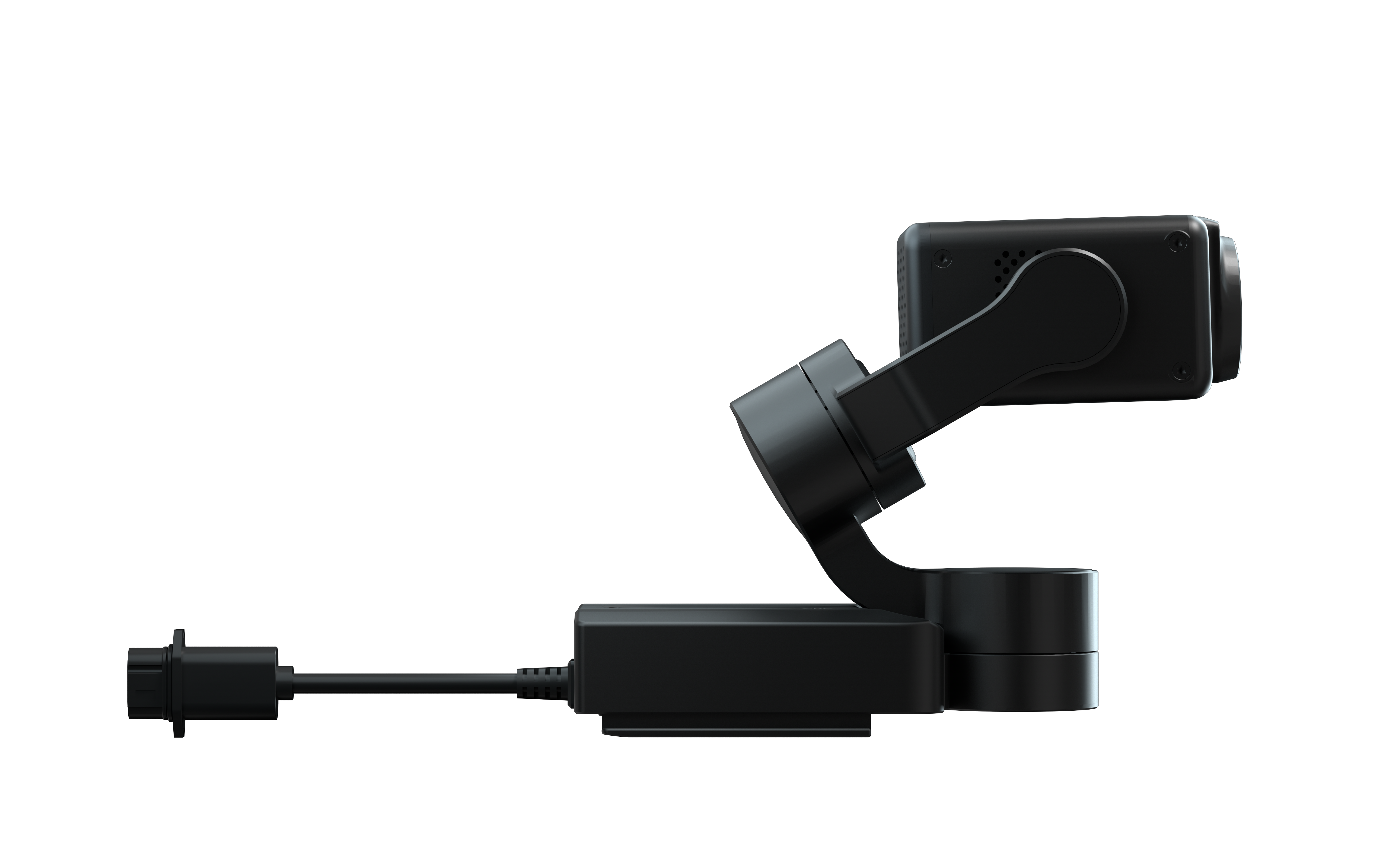

IR3 Appearance
Specs
Overall parameters
Model
IR3
Weight
208 ±5 g (excluding bracket)
Dimensions
126.5×60×88.5 mm
Support Models
DJI Matrix M30 Series
Effective Distance
≥ 300 m
Laser Type
Surface-emitting laser
Luminous Wavelength
850±10 nm
Zooming Time
≤ 2 s (far angle - near angle)
Light Output Power
4±0.5 W
Illumination Angle
Electrically synchronized zoom, continuously adjustable from 2.0° to 70°
Far angle 2.0°: Effective distance ≥ 800 m, spot diameter 28 m
Near angle 70°: Effective distance ≥ 80 m, spot diameter 112 m
Laser Safety Level
Class 3B (FDA, IEC)
Laser Safe Distance
15 m at the minimum angle
Storage
Memory Card Types
Supports up to 16GB
Storage File System
exFAT
