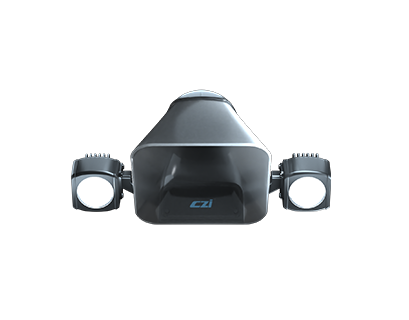

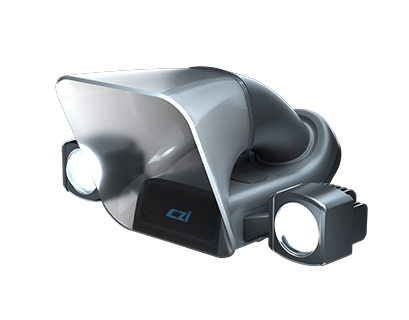

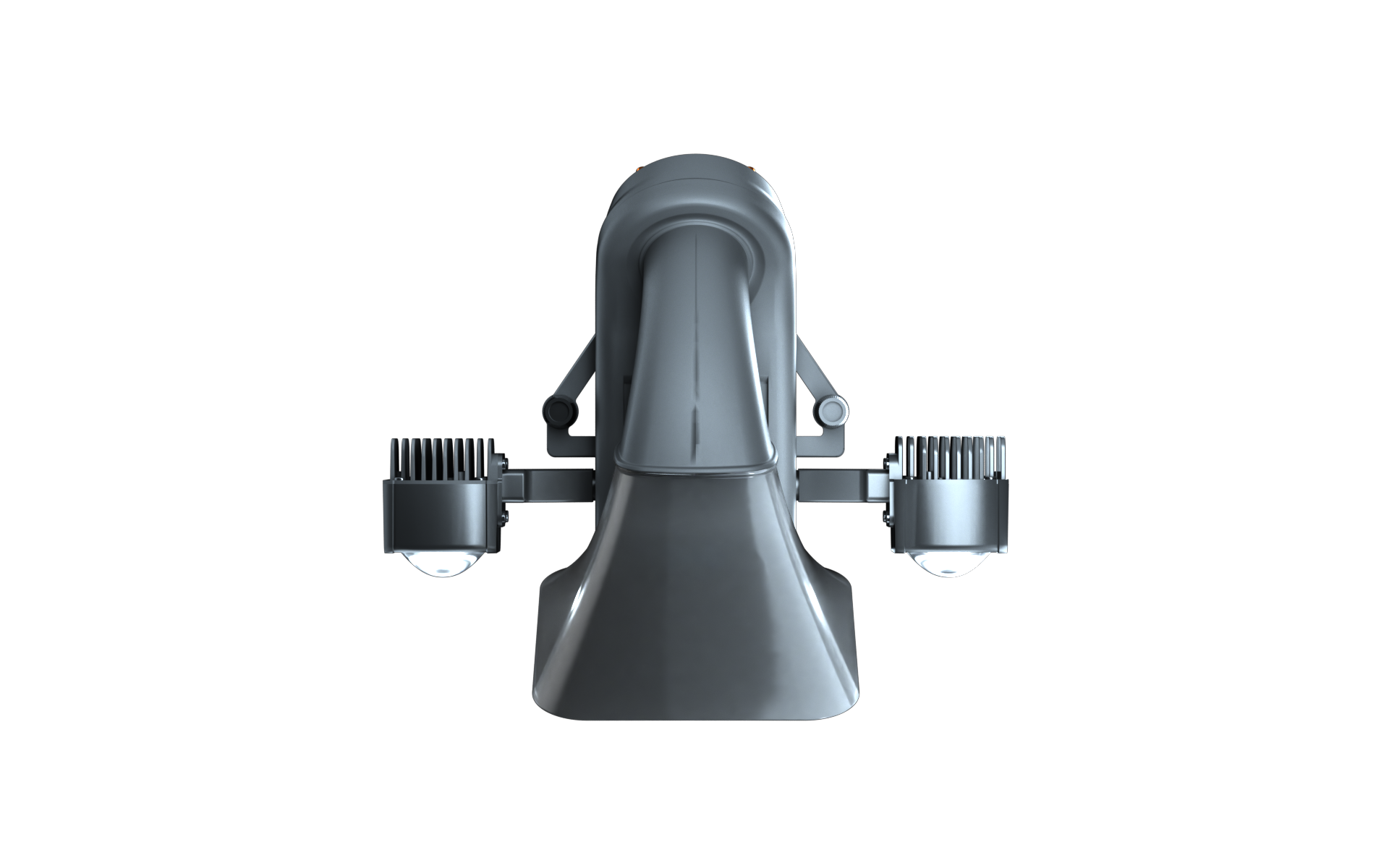

LP20 Appearance
Product Information
LP20 Overall parameters
Model
LP20
Dimensions/mm
L:127 x W:147 xH:78
Weight
200士5g
Protection grade
IP53
Operatingtemperature
-20--50°C
Total power
<50W
Sound pressure
120dB@1m（2.1KHz）
Effective broadcasting distance
>300m
Searchlight fov
FOV 13°
Central illuminance
32lux@50m
14lux@75m
8lux@100m
Software support
FlightHub 2, pilot 2, CZl Assistant
Broadcasting mode
Recording broadcasting
Multi-country TTS
File playback
Flashing light mode
Red and blue flashing
Blue and blue flashing
Red and red flashing
Yellow and yellow flashing
Other functions
Sound pickup feedback
Spot following
Al centering
LP20-M30 Overall parameters
Model
LP20-M30
Dimensions
L:128mm×W:172.7mm×H:76.5mm
Weight
220±5g
Environmental adaptability
Operating temperature: -20°C - +50°C
Total power
＜50W
Effective broadcasting
distance
＞300m
Searchlight fov
FOV 13°
Central illuminance
29lux@50m
13lux@75m
8lux@100m
Software support
FlightHub 2, DJI Pilot 2, CZI Assistant
Broadcasting mode
Live broadcasting, Recording
broadcasting, TTS text
broadcasting, Audio files
Flashing light mode
Red and blue flashing, Blue and
blue flashing, Red and red flashing,
Yellow and yellow flashing
Other functions
Sound pickup feedback
