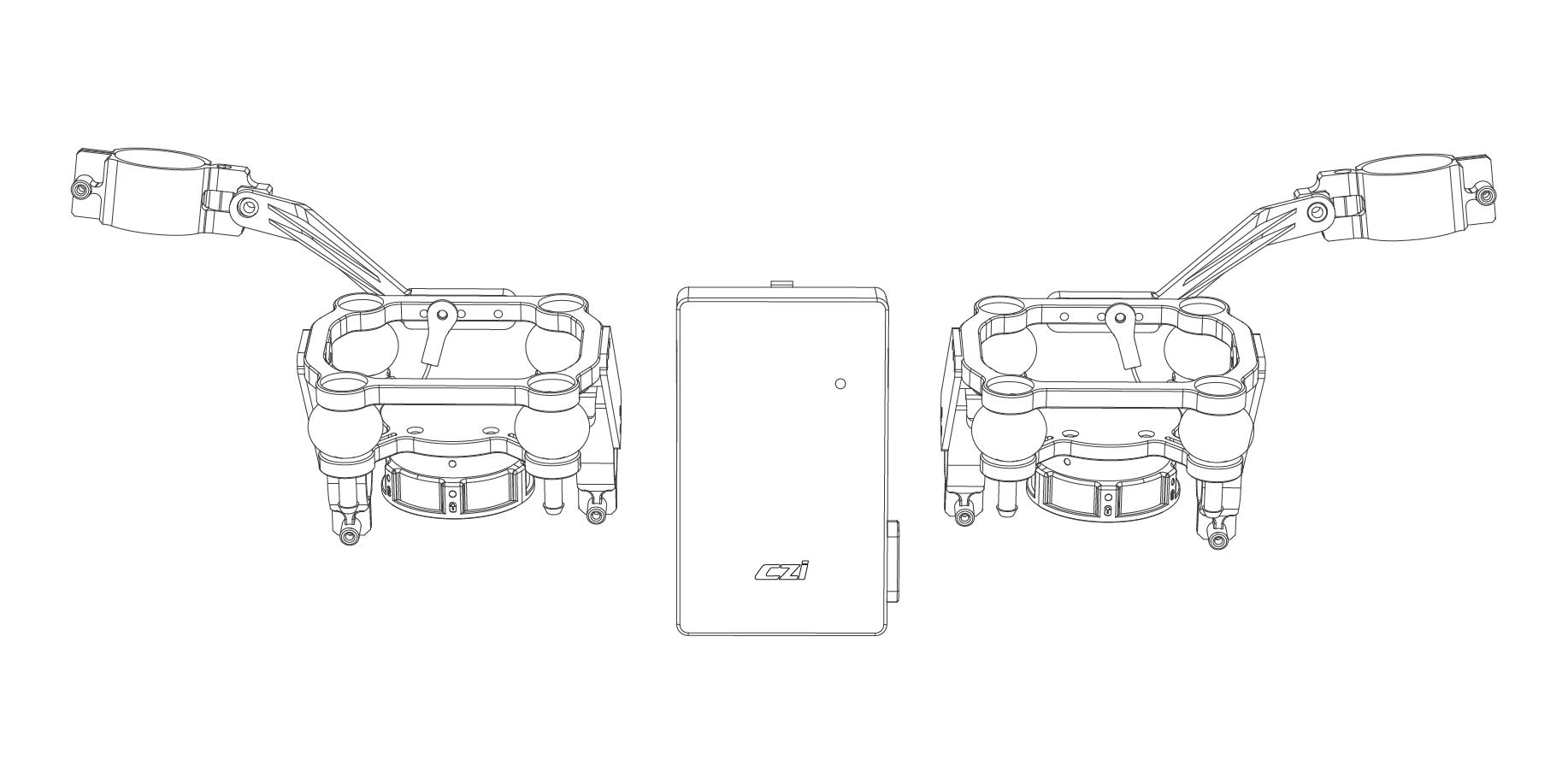

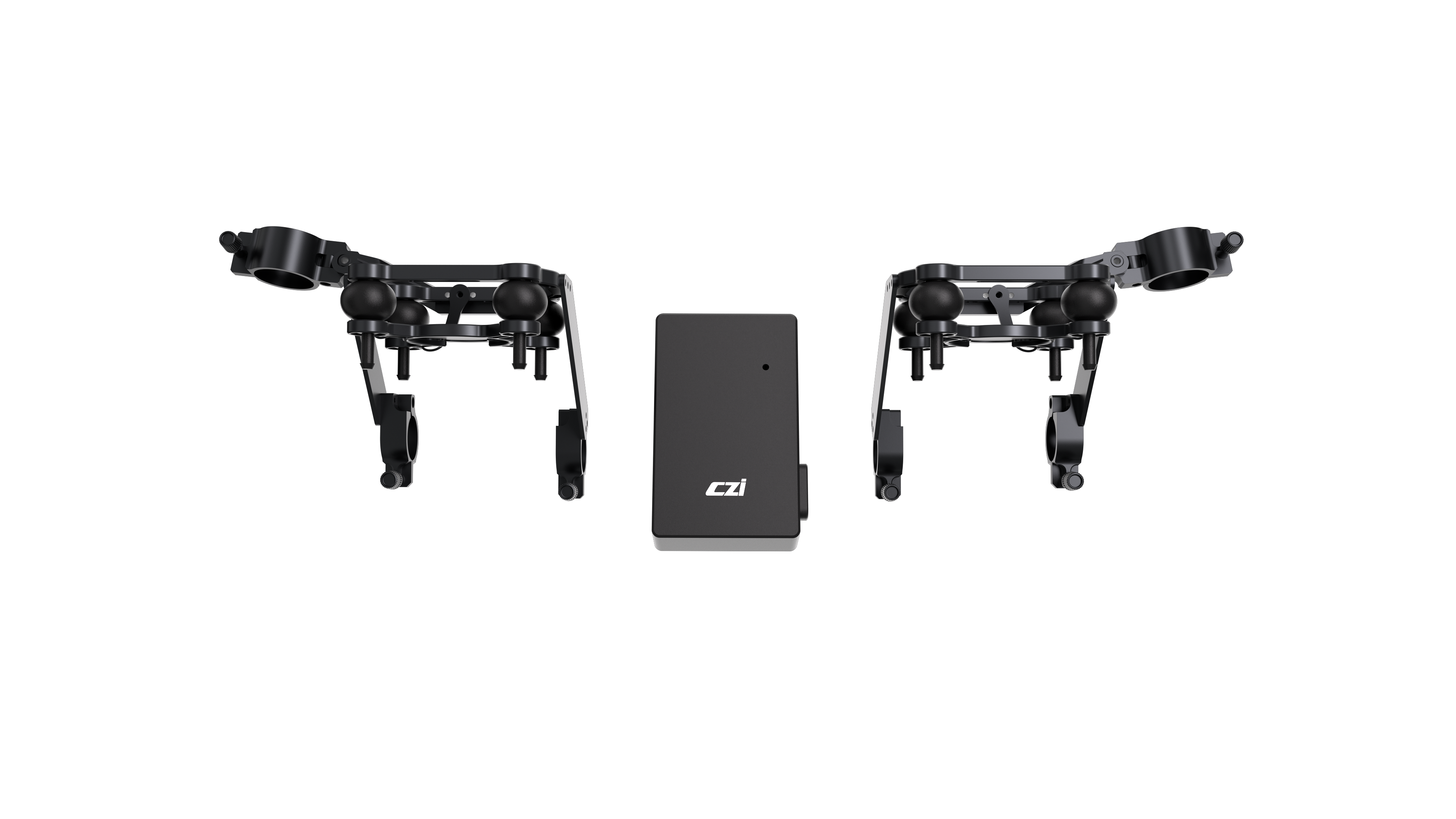

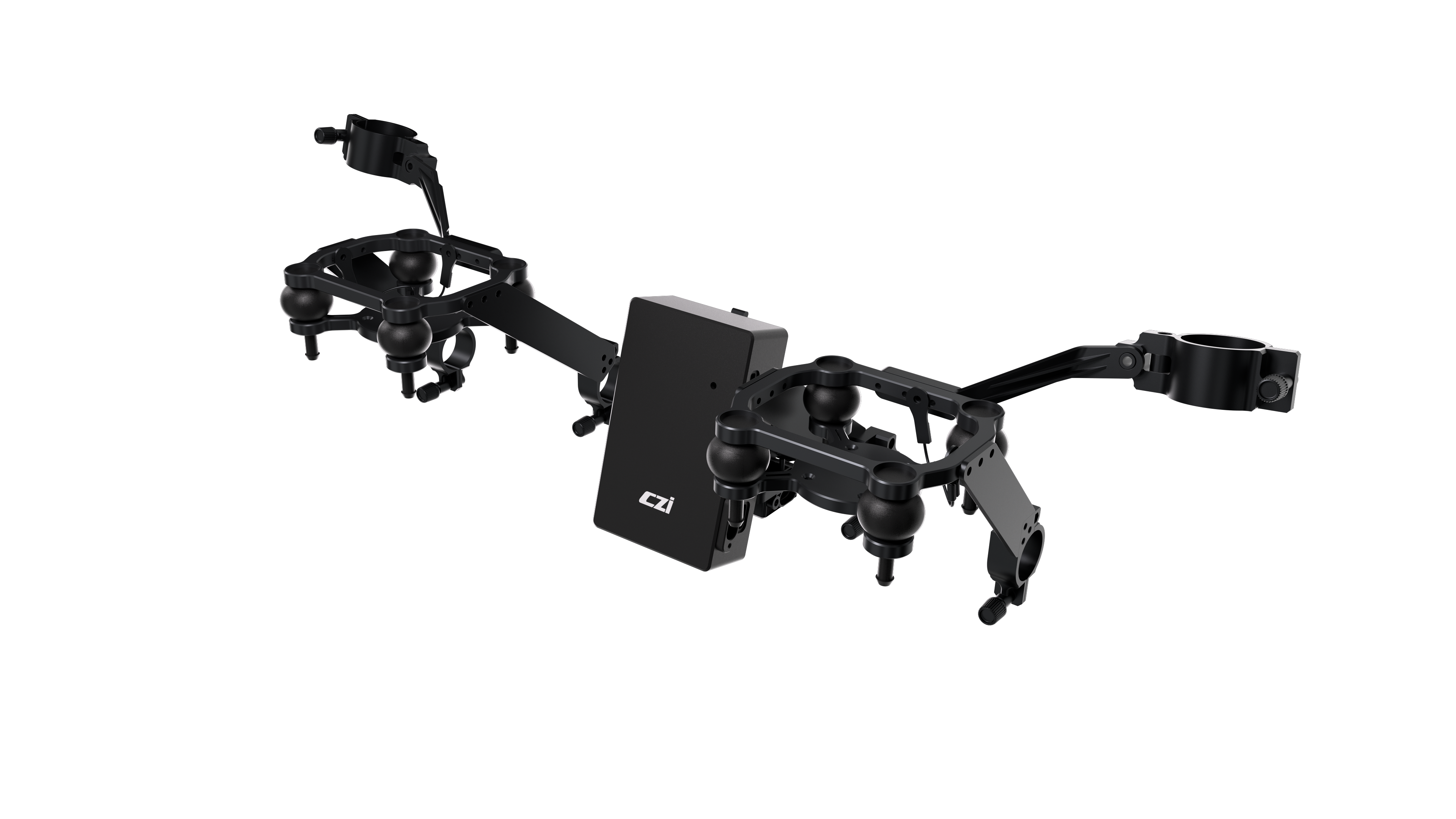

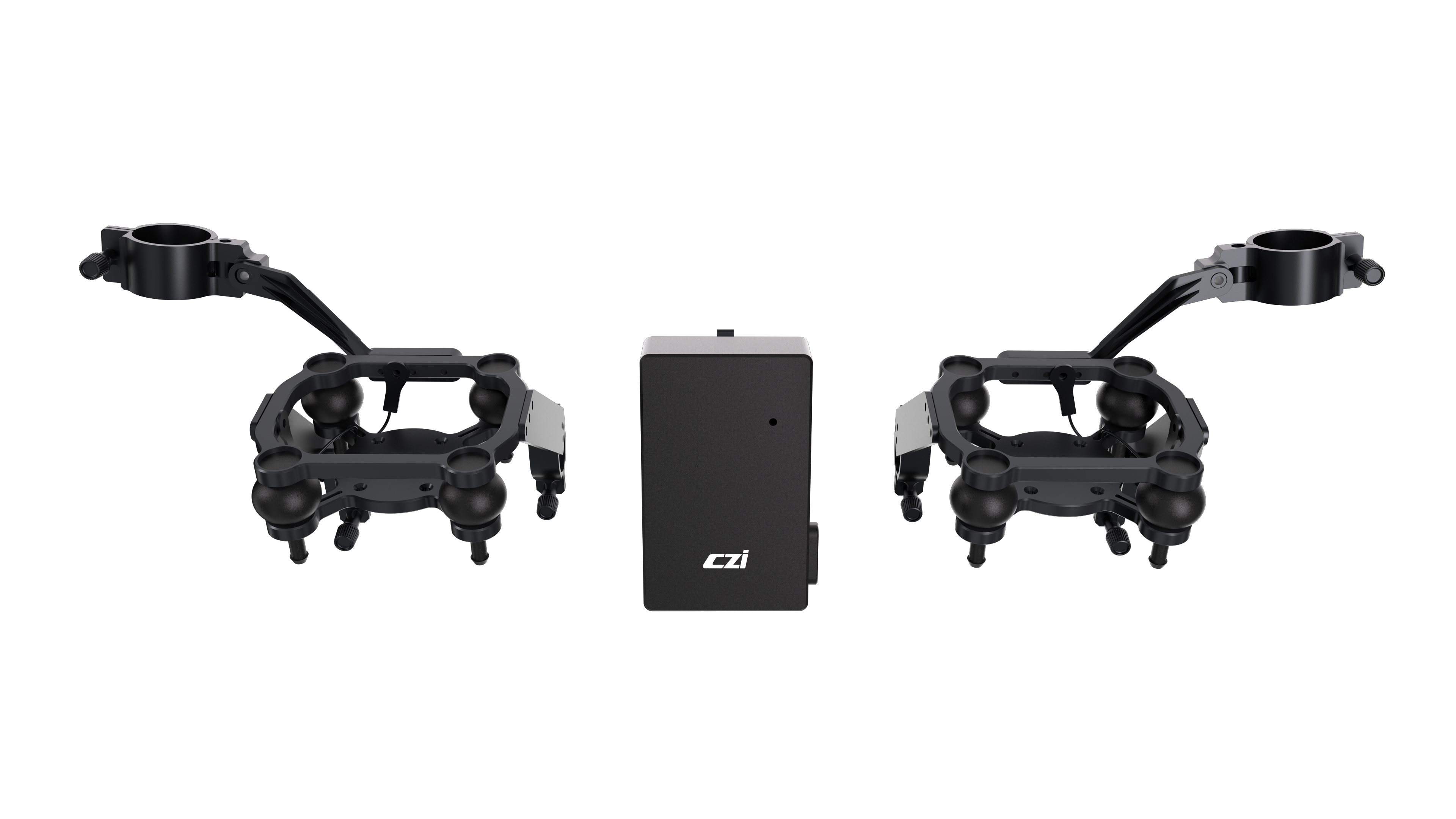

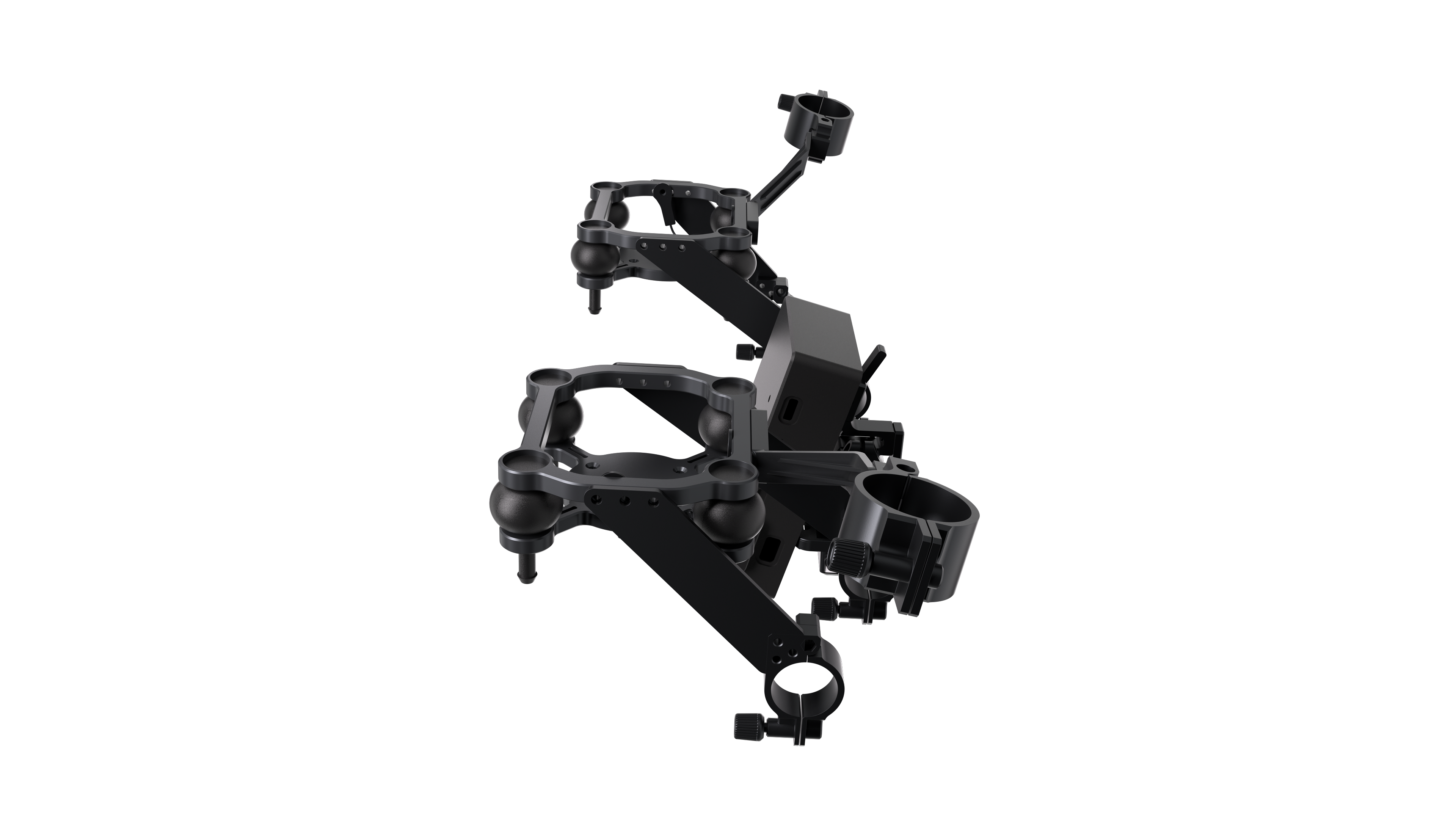

FS32appearance
Product information
Overall parameters
Model
FS32
Specification of FS32
-------------
External dimension/mm(Control box)
L:70 x W:30 xH:106
External dimension/mm (Unilateral bracket)
L:158 x W:130 xH:135
Material
PC + Aluminum Alloy
Installation method
Quick release
Total weight/ g
≤635
Control
PSDK
Rated input voltage / V
60V
Total power/W
400士10%
Output power at XT30 terminal/W
≤300
Operating environment
Temperature:-20°C-+50°C<br/>
Humidity:15%-95%
Storage environment
Temperature:-40°C-+85°C<br/>
Humidity:15%-95%
Service life
≤Three years
Packing
Transit case + EVA liner
Specification of FS32 Control box
-------------
Rated input voltage/V
52.22V-59.92V
Total power/W
≤400W
Rated voltage at XT30 output terminal/V
24V
Maximum power at XT30 output terminal/W
≤300W
Rated voltage at Type-C output terminal/V
17V
Rated power atType-Coutput terminal/W
70W
