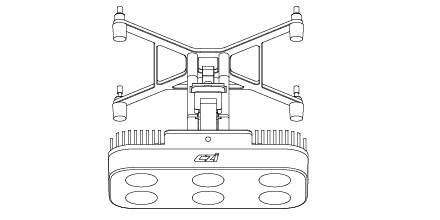

FL60appearance
Product information
Overall parameters
Model
FL60
Light body dimension /mm
120mm*58mm*60.4mm
Quick release dimension /mm
113.5mm*119.25mm*40.3mm
Overall dimension /mm
120mm*119.25mm*88.8mm
Material
PC + Aluminum alloy
Installation mode
Quick release
Angle adjustment
±45°
Total weight /g
≤ 300
Electrical interfaces
M300：DJI OSDK interface
M350：E-Port interface，M30：PSDK interface
Rated voltage /V
24
Rated power /W
60±10%
maximum luminous flux /lm
Red 1560；Green 3200；Blue 580；Yellow 2680
Optical wavelength /nm
Red 622；Green 526；Blue 452；Yellow 592
Ingress protection
IP54
Operating environment
Temperature：-20°C ～ +50°C
Humidity：15% ～ 95%
Storage environment
Temperature：-20°C ～ +60°C
Humidity：15% ～ 95%
