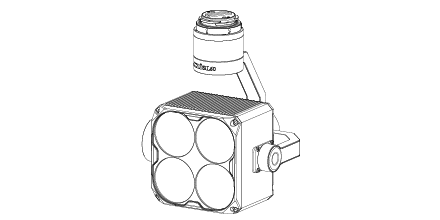

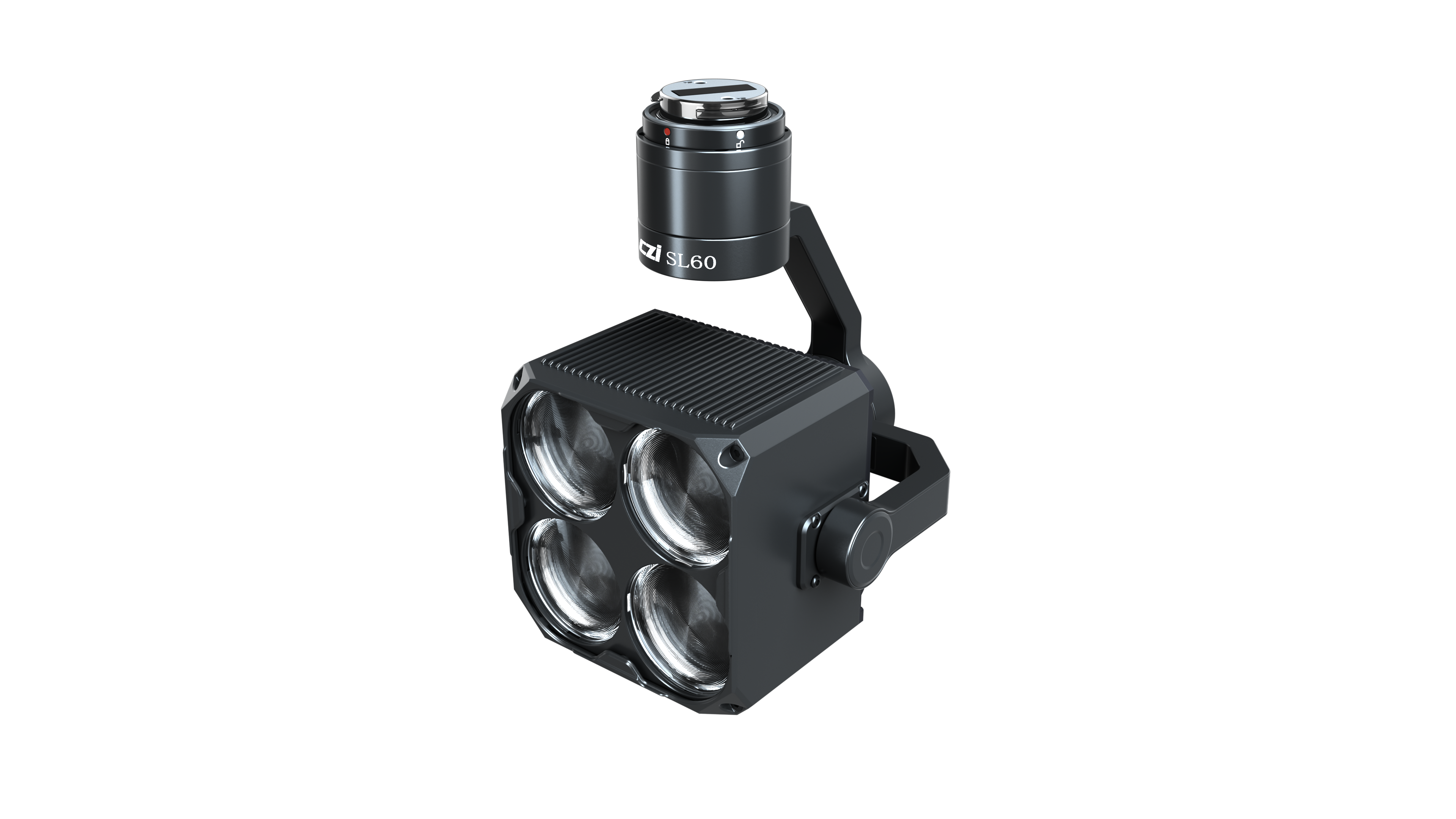

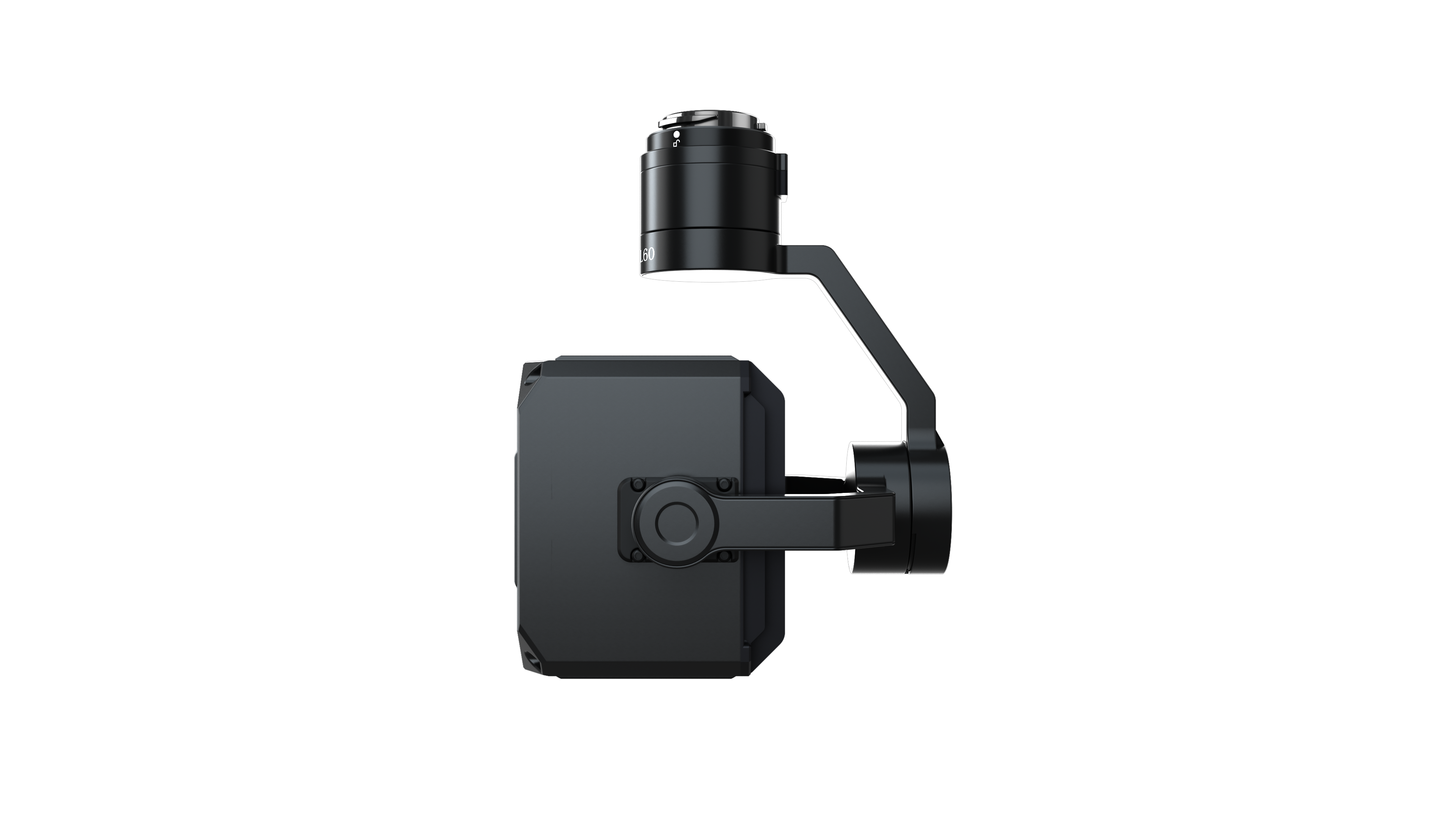

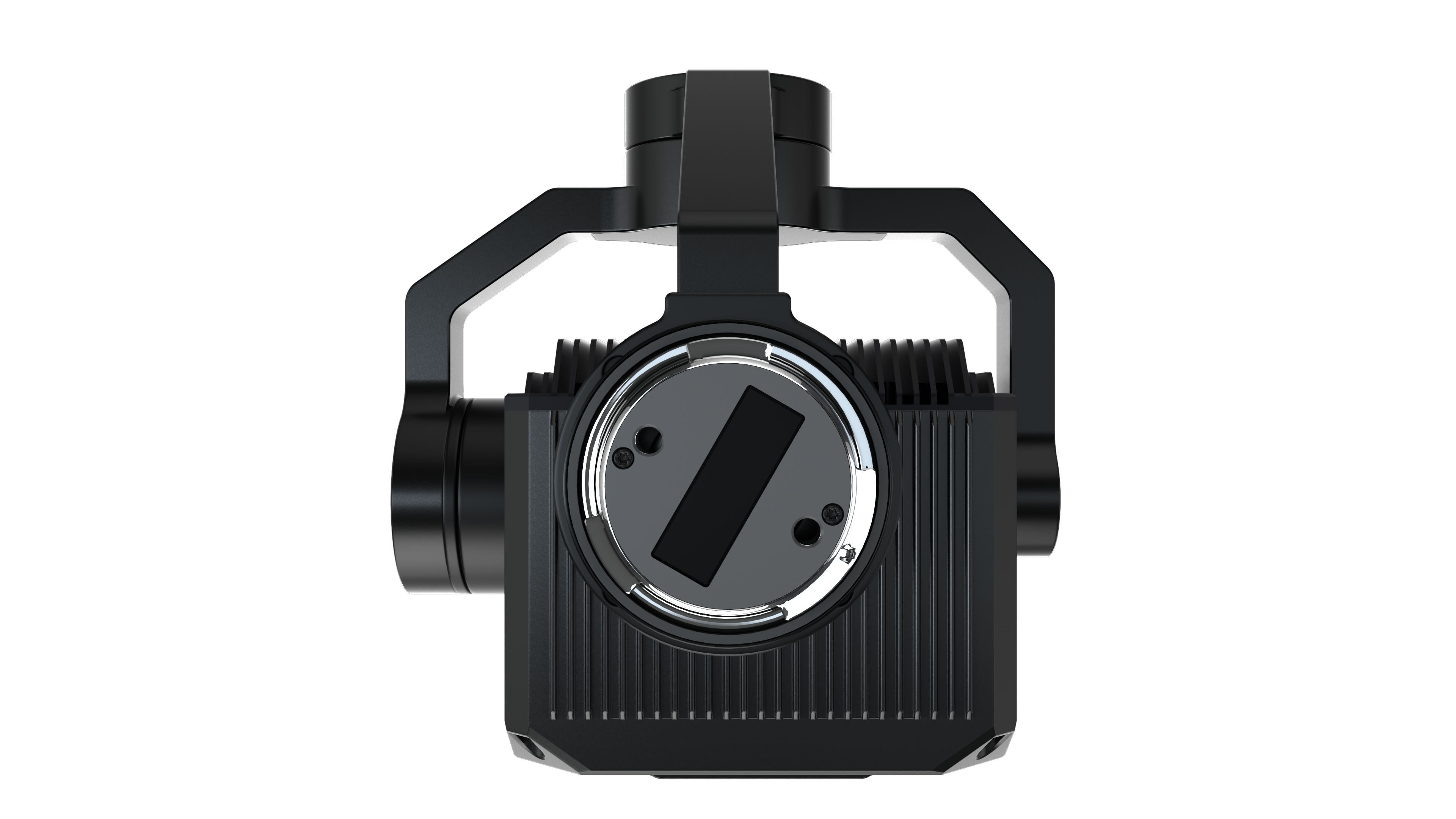

SL60 Appearance
Specs
Overall parameters
Model
SL60
Electrical Interface
DJI SkyPort V2.0
Weight
≤ 788 g
Dimension
129×131×172 mm
FOV
≥ 15°
Luminous Flux
Red light 1471±3% lm
Blue light 460±3% lm
Yellow light 2620±3% lm
Green light 3080±3% lm
Light Wavelength
Red light 621±10% nm
Blue light 452±10% nm
Yellow light 592±10% nm
Green light 522±10% nm
Supply Voltage
PSDK 17 V + OSDK 24 V PSDK 17 V
Total Power
≤ 98 W ≤ 68 W
LED Power
90 W 60 W
Illumination Distance
50 m 100 m 50 m 100 m
Spot Diameter
13 m 26 m 13 m 26 m
Illumination Area
132.7 ㎡ 530.6 ㎡ 132.7 ㎡ 530.6 ㎡
Central Illuminance
30.4 Lux 8.3 Lux 22.3 Lux 5.5 Lux
Function Modes
Steady on 90 W 60 W
Strobe light 60 W 60 W
Gimbal angle adjustment
Automatically follow
Brightness adjustment
Gimbal Rotation Range
Pitch -90° to +15°
Pan ±90°
Gimbal Design Scope
Pitch -100° to +25°
Pan ±100°
Roll -90° to +60°
Operating Temperature
-15°C to 50°C
