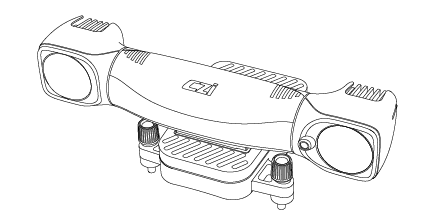

GL10 V2appearance
Product information
Overall parameters
Model
GL10 V2
Electrical interface
DJI PSDK
Weight / g
≤130
Dimension / mm
L68mm*W140mm*H55mm
Total power / W
36
White LED power / W
30
Red, Blue, Yellow LED power / W
2W/2W/2W
Supply voltage / V
15
Luminous flux / lm
3200±3%
FOV/°
14
Illumination distance / m
100 75 50
Spot diameter / m
24 18 12
Illumination area /m²
422.5 237.6 105.6
Central illuminance / Lux
6.4 11.5 26.3
Basic functions
White light night illumination
Red, blue and yellow multi-color flashing
Green laser for direction indication
Gimbal AI algorithm automatic adjustment
Gimbal controllable rotation range
Pitch -100°~+60°
Operating temperature
-20°C~+50°C
