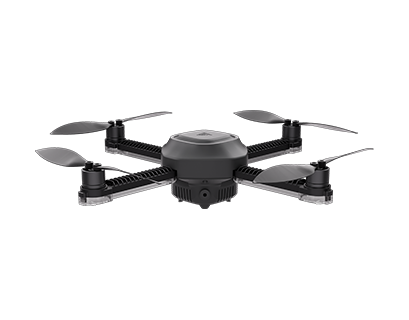

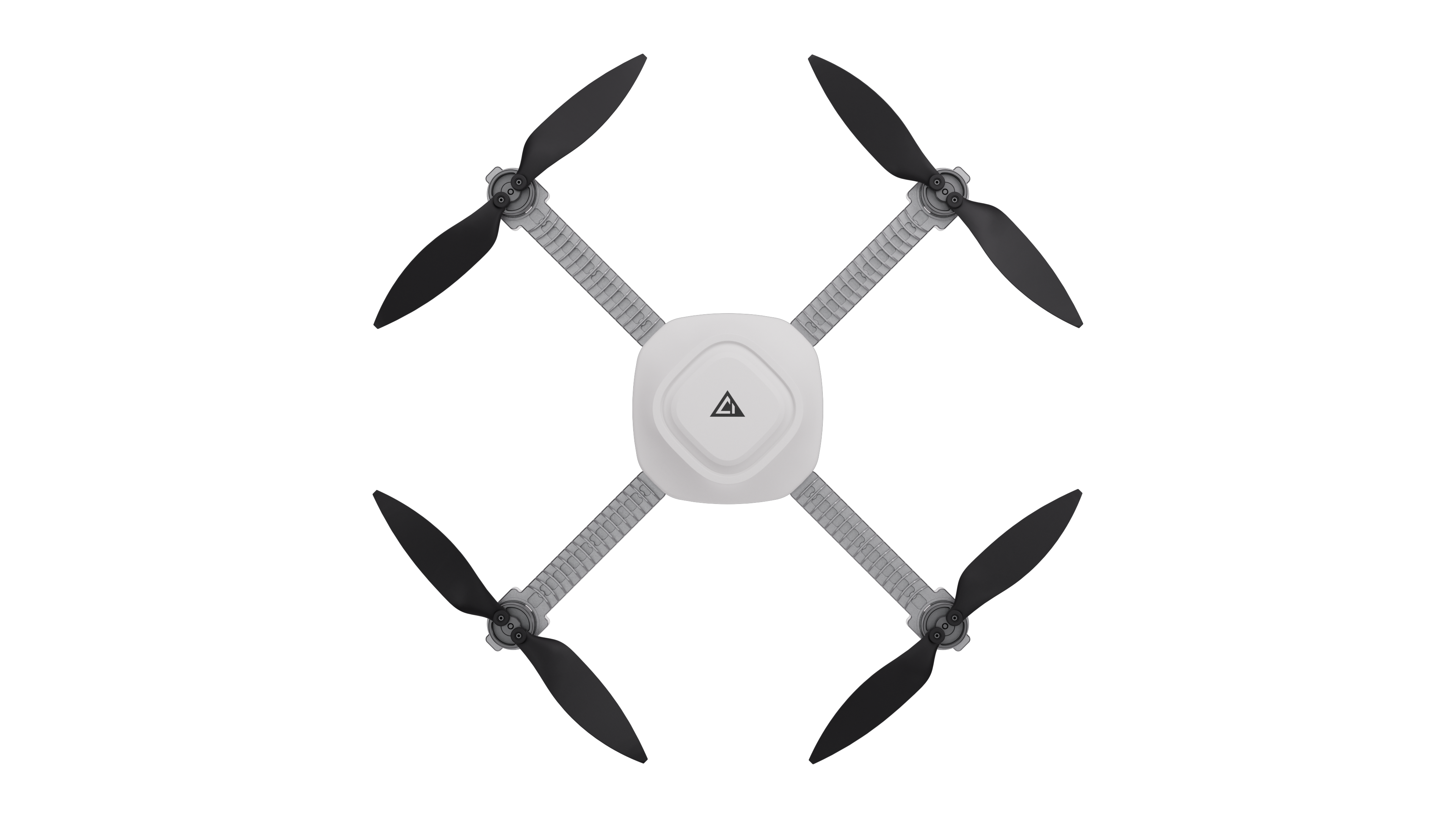

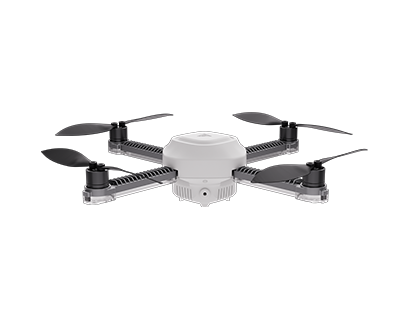

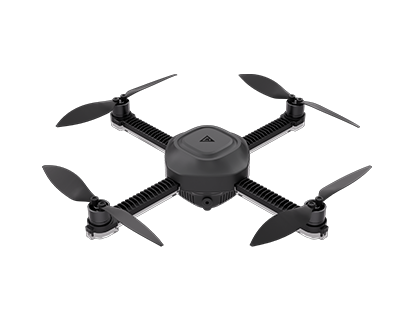

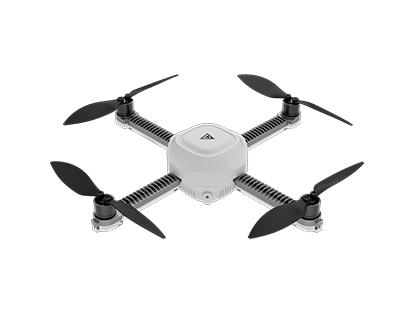

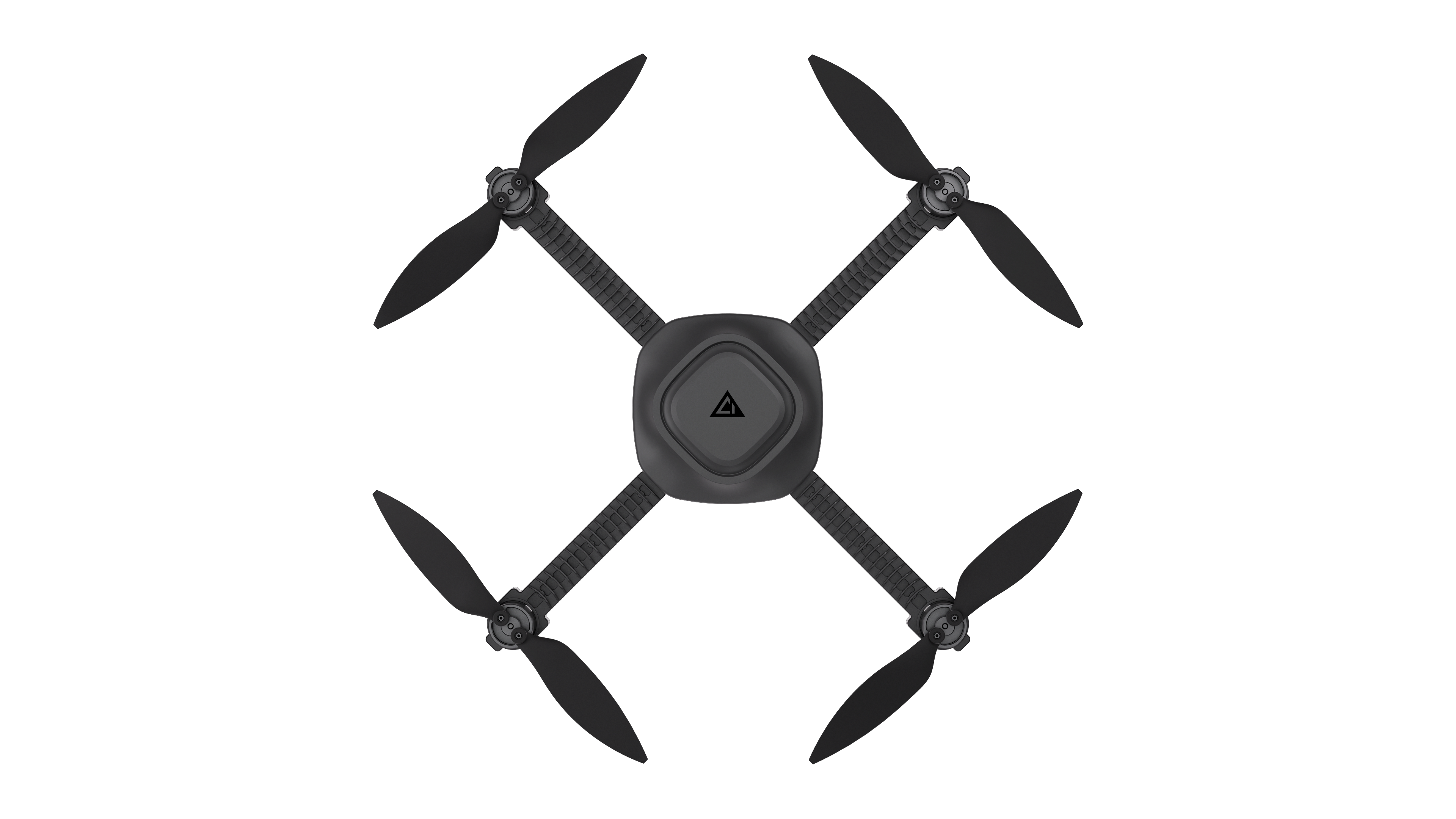

CZ10 Appearance
Product Information
Overall parameters
Model
CZ10
Electrical interface
Aviation connector
Total System Weight
≤3500g
IP Rating
IP4X
Skyborne Terminal Weight
≤249g

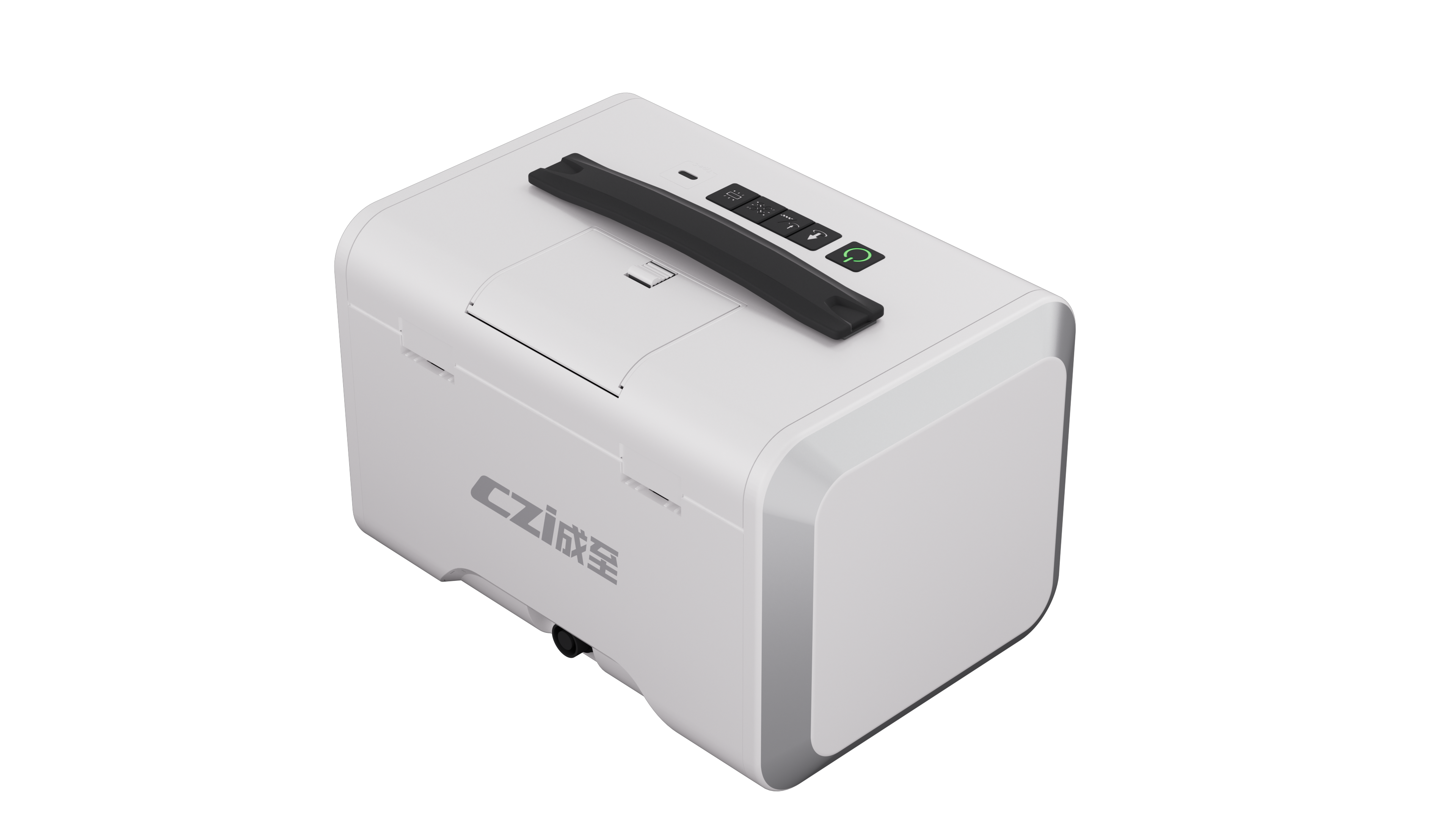

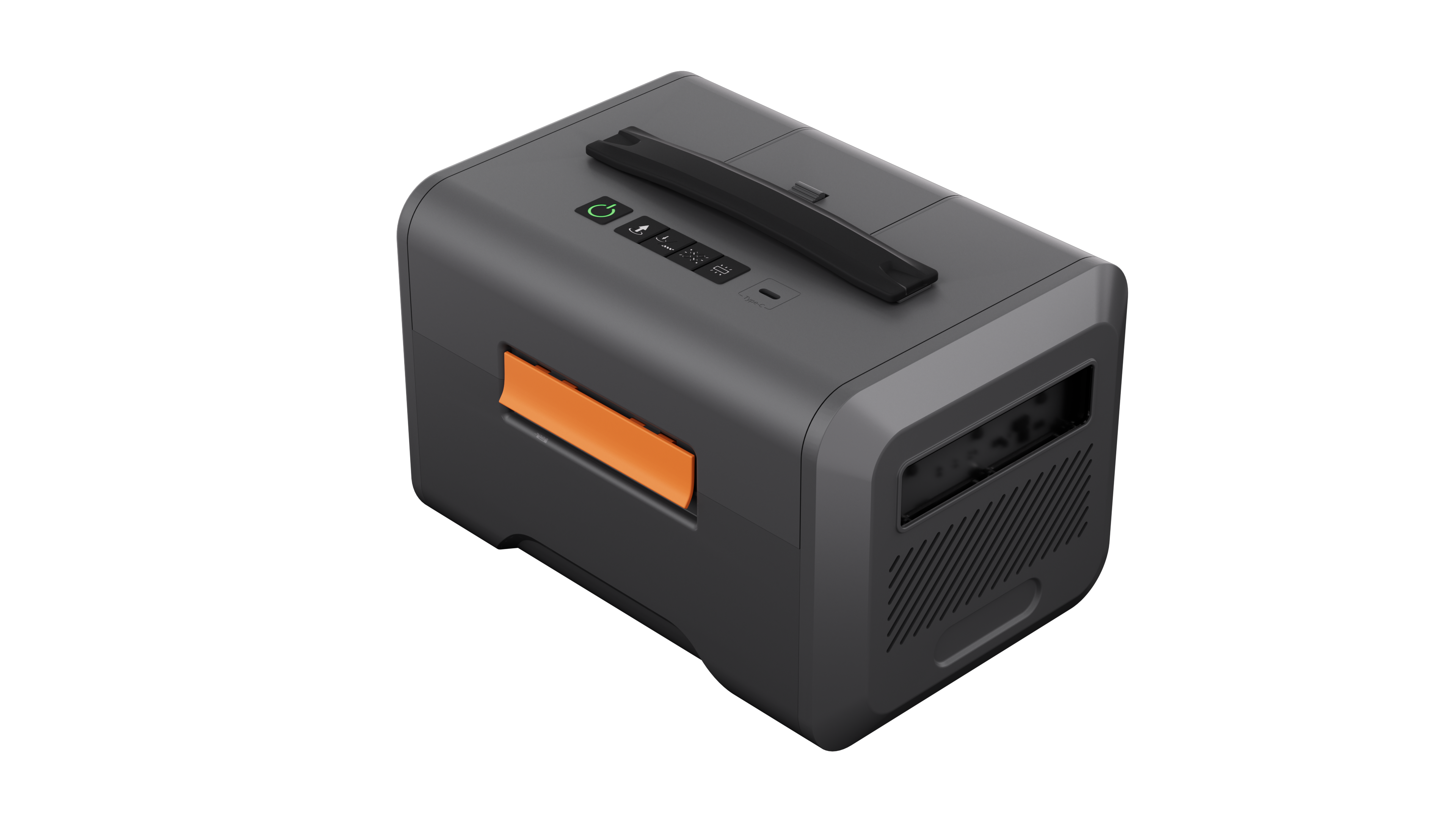

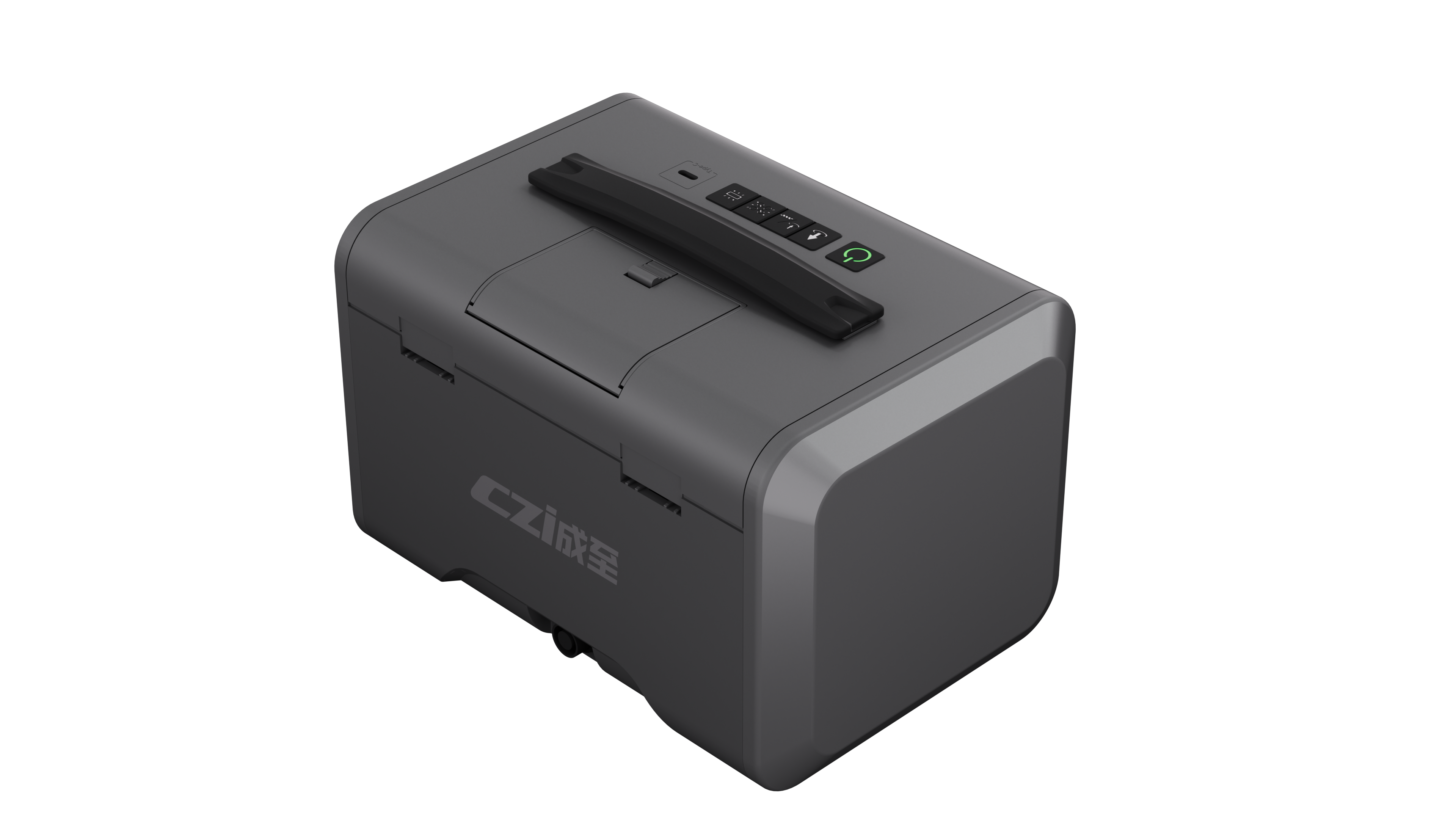

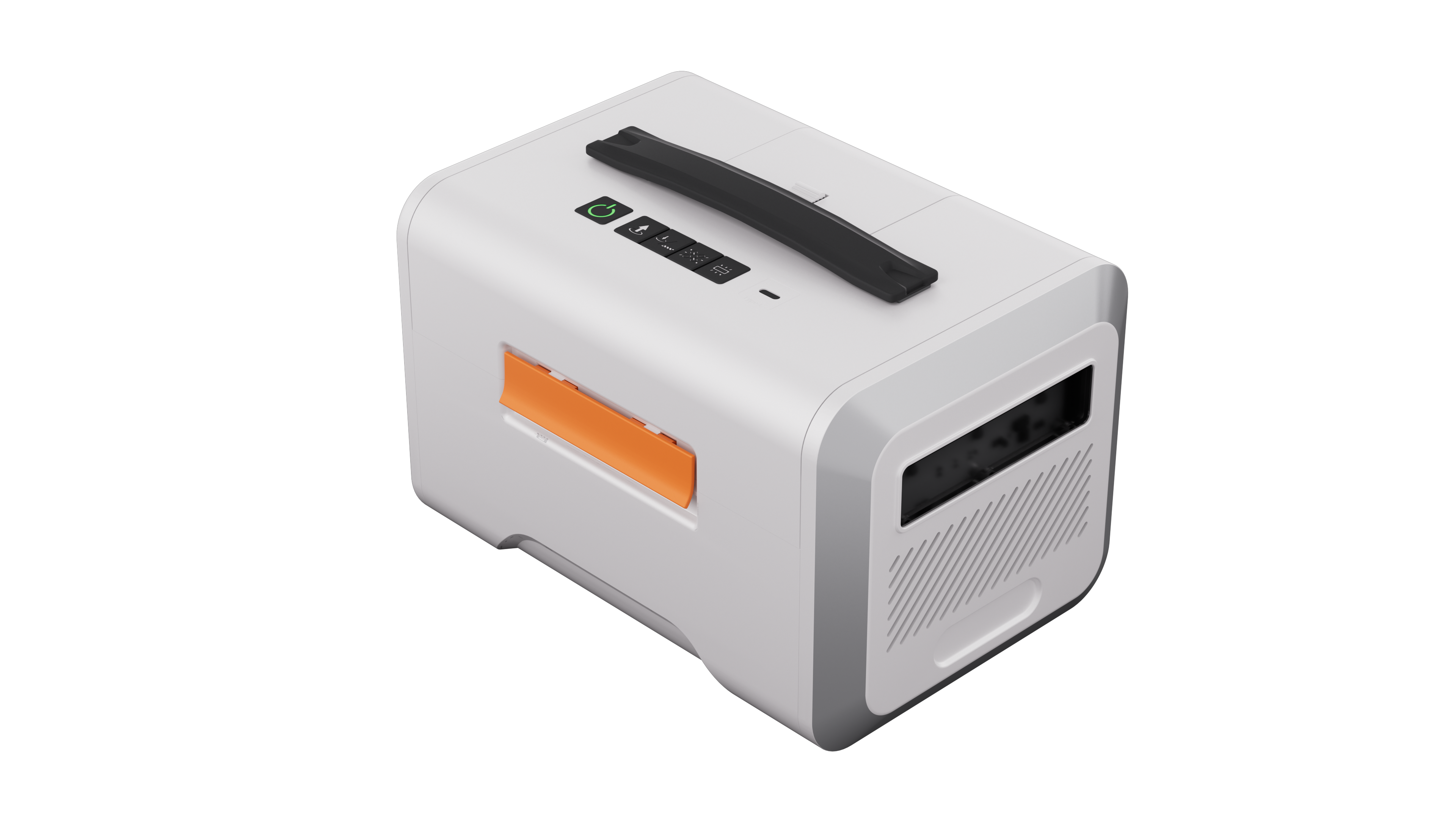

Ground Station Weight
≤3200g
Skyborne Terminal Deployment Dimensions
273×273×61mm
Skyborne Terminal Folding Dimensions
117×117×127mm
Ground Station Dimensions
250×173×165mm
Skyborne Lighting Rated Power
≤100W
Arm Light Maximum Brightness
16000lm
Ground Flashlight Maximum Power
20W
Illumination Coverage (10m)
1300㎡
Lighting Mode
Ambient Light Mode\Red-Blue Strobe Mode\SOS Mode
Arm Indicator Light
Dual-color (Red-Green) LED
Hovering Accuracy
Horizontal：±0.1m Vertical：±0.1m
Maximum Yaw Rate
50deg/s
Maximum Tilt Angle
40°
Maximum Flight Altitude
10m
Tethered Continuous Flight Time
>24h
Maximum Wind Resistance
8m/s
Positioning Technology
RTK（BDS+GPS+Galileo+GLONASS+QZSS）
Operating Temperature Range
-10°C～+40°C
Maximum Operational Altitude
3000m
Control Mode
Dual-mode Control (APP/Ground Station)
Integrated Battery
2500mAh\14.8V
Power Adapter
InPut：100-240V~50/60Hz 5.0A MAX
OutPut：48.0V/5.0A 240W
