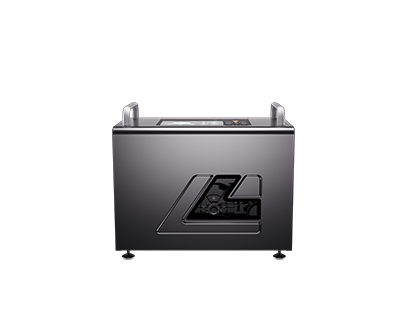

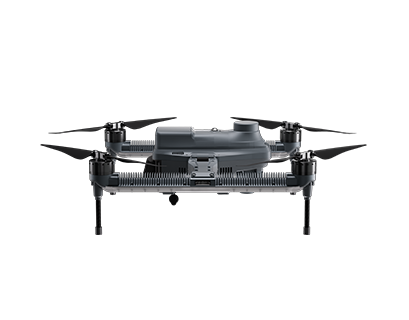

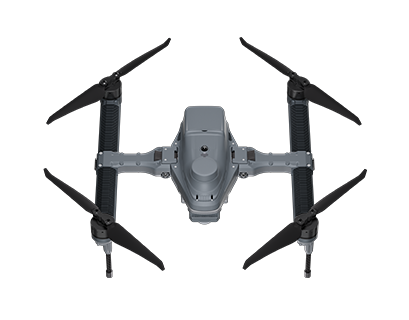

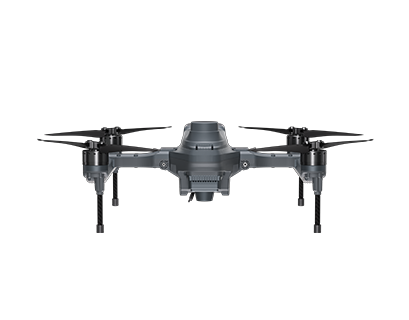

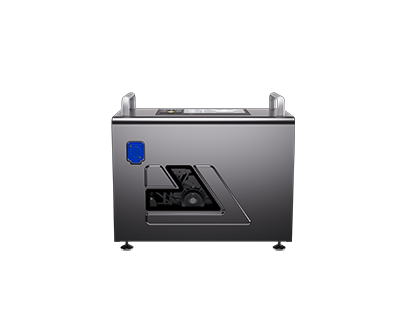

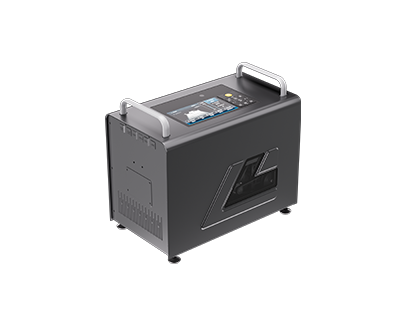

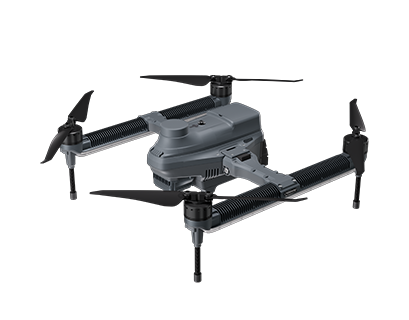

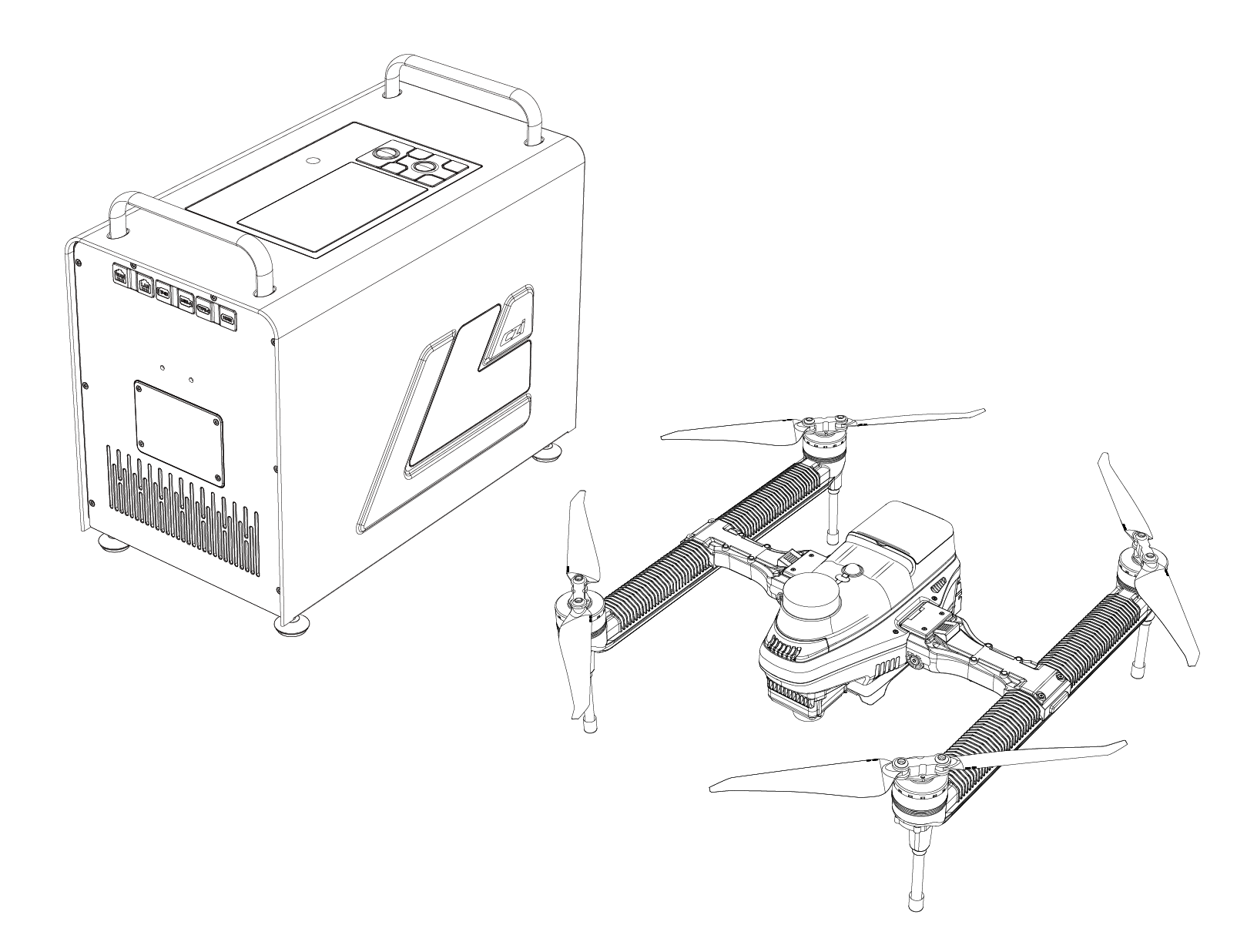

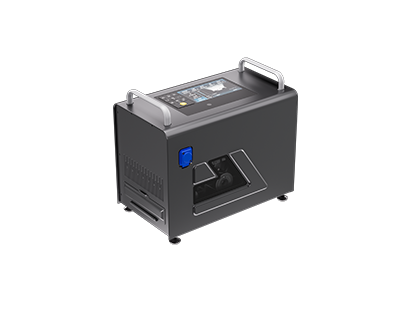

CZ100 Appearance
Specs
Overall parameters
Model
CZ100
Airborne Unit
≤ 2.6 kg
Airborne Unit Deployment
384×381×169 mm
Airborne Unit Folding
381×237×200 mm
Symmetrical Motor Shaft Distance
480 mm
Maximum Flight Altitude
4000 m
Wind Resistance Level
Level 7
Hovering Accuracy (calm or light wind)
horizontal: ±1.5 m, vertical: 0.5 m (in GNSS mode)
Maximum Ascent Speed
1.5 m/s
Maximum Descent Speed
1 m/s
Propeller Size
12 inches
GNNS
RTK, GPS + BDS + Galileo
GNSS Frequency Band
B1C, B2a, E1B/C, E5a, L1C/A, L5
Software BDS only
Support
Hardware BDS only
Support
Matrix Light Power
800 W
Total Luminous Flux
120,000 lm
Lighting FOV
120°
CMOS Size
1/2.8″
Video Resolution
1920×1080

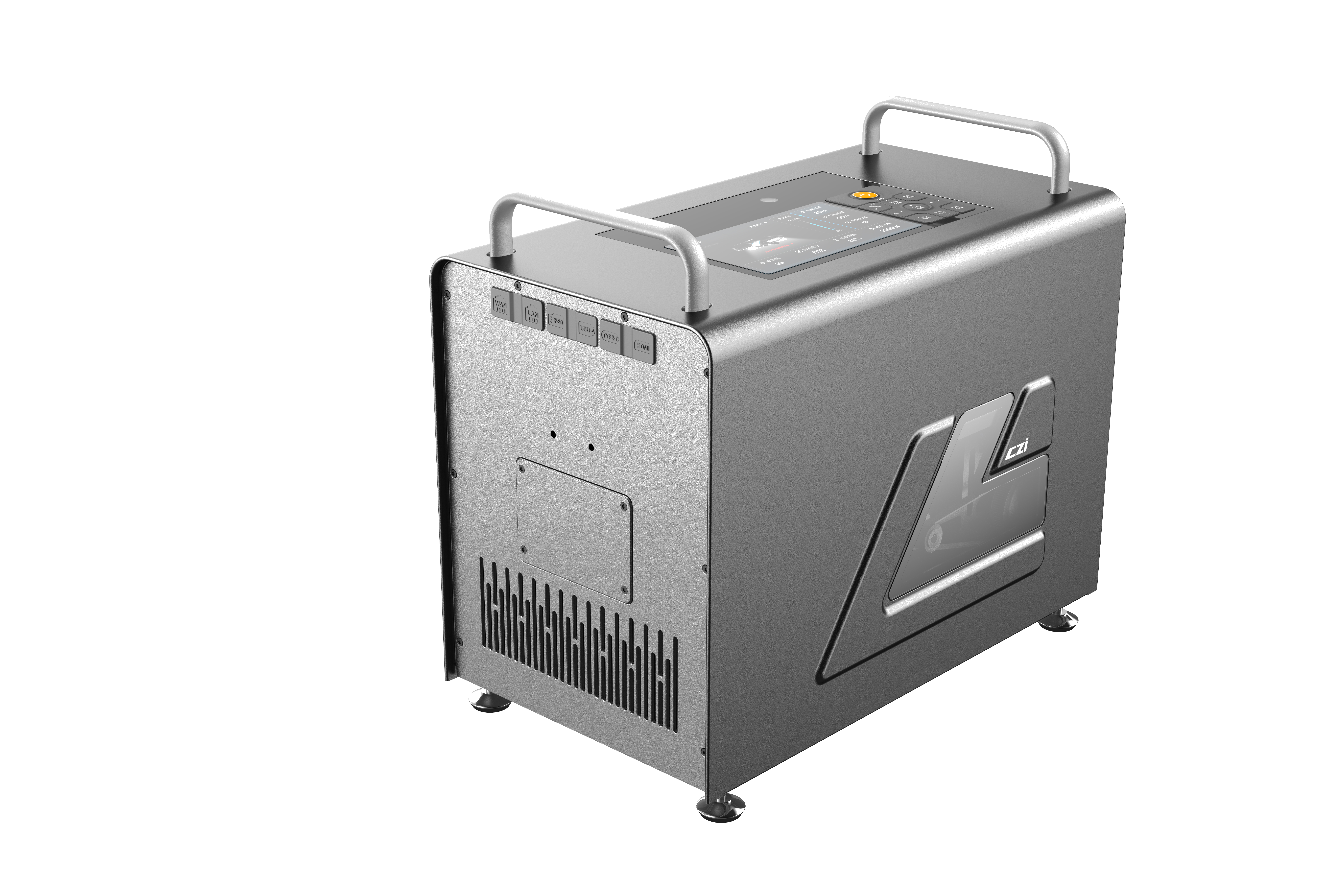

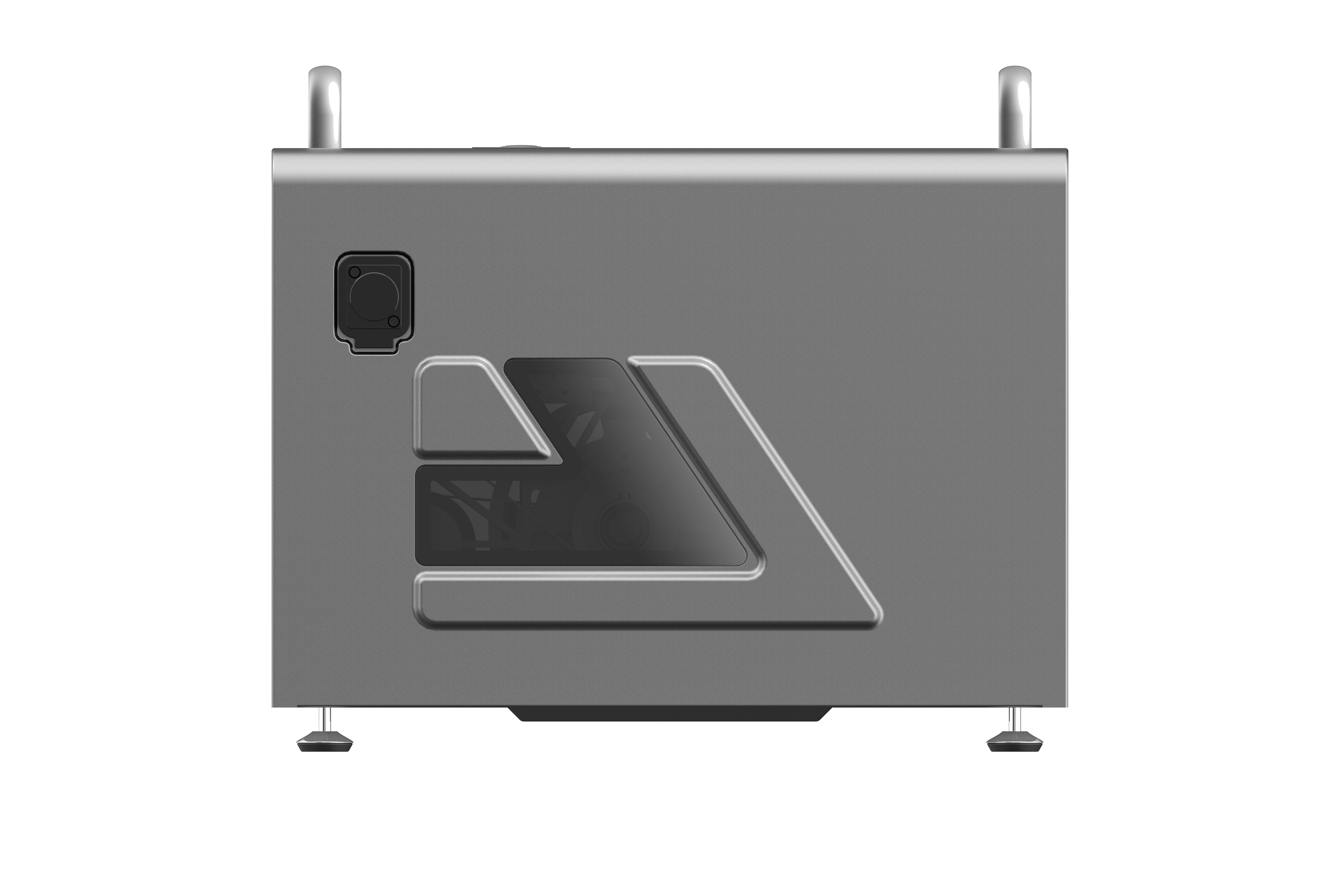

Ground Station
≤ 12.4 kg
Ground Station
385×337×224 mm
Ground Station Input Voltage
176–264 VAC
Ground Station Battery Capacity
2300 mAh

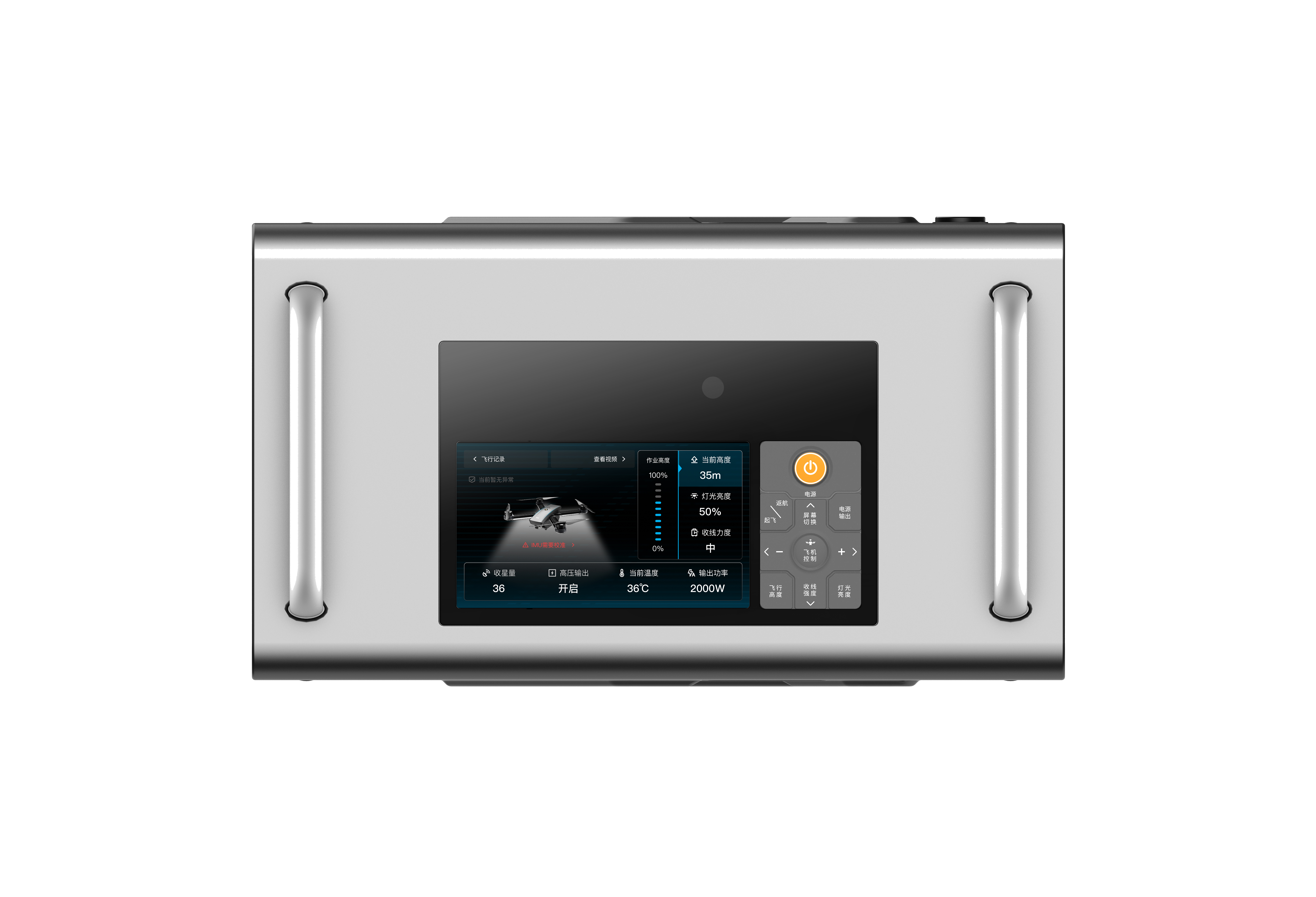

Screen Size
5.5 inches
Screen Resolution
1920×1080
Screen Brightness
1000 nits
Ground Station Output Interface
HDMI, Network ports
IP Rating
IP44
Operating Temperature
-20℃ to 50℃
Storage Temperature
-40℃ to 70℃
