TK4 Appearance
Specs
Overall parameters
Model
TK4

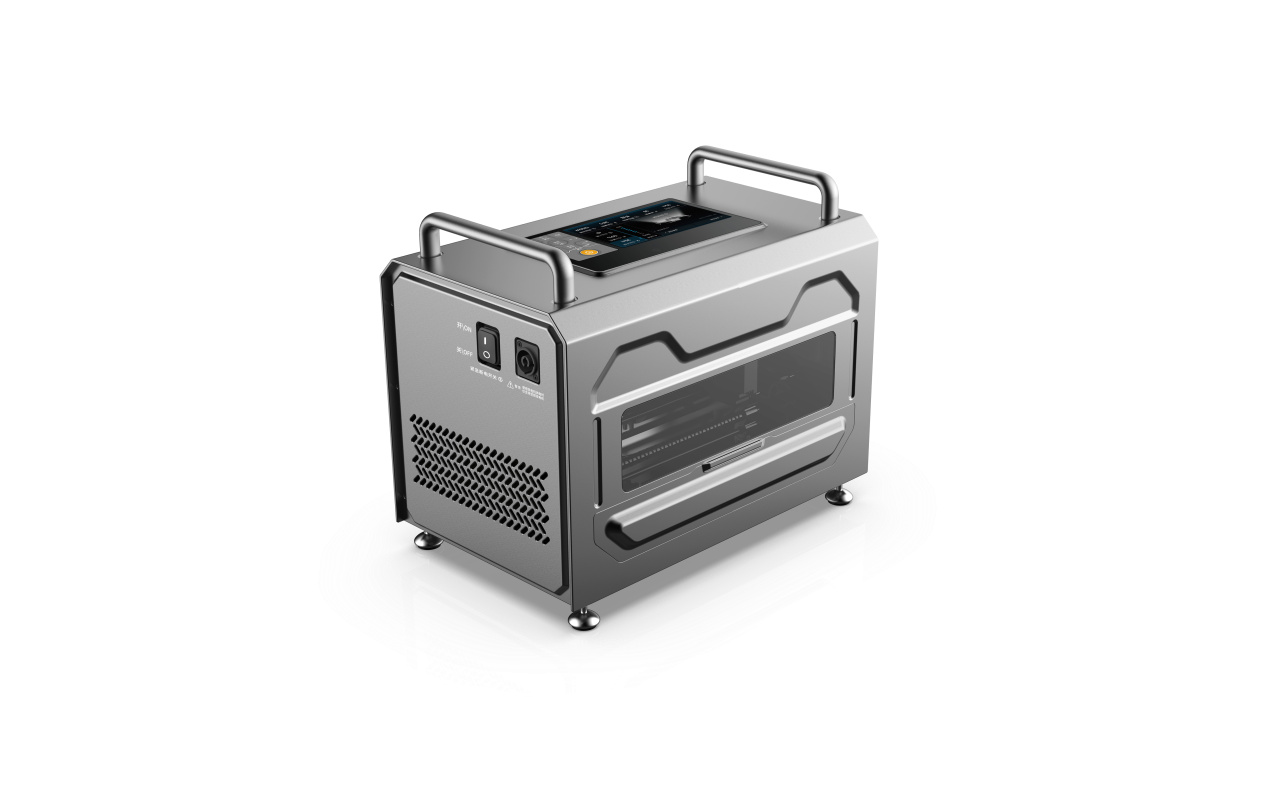

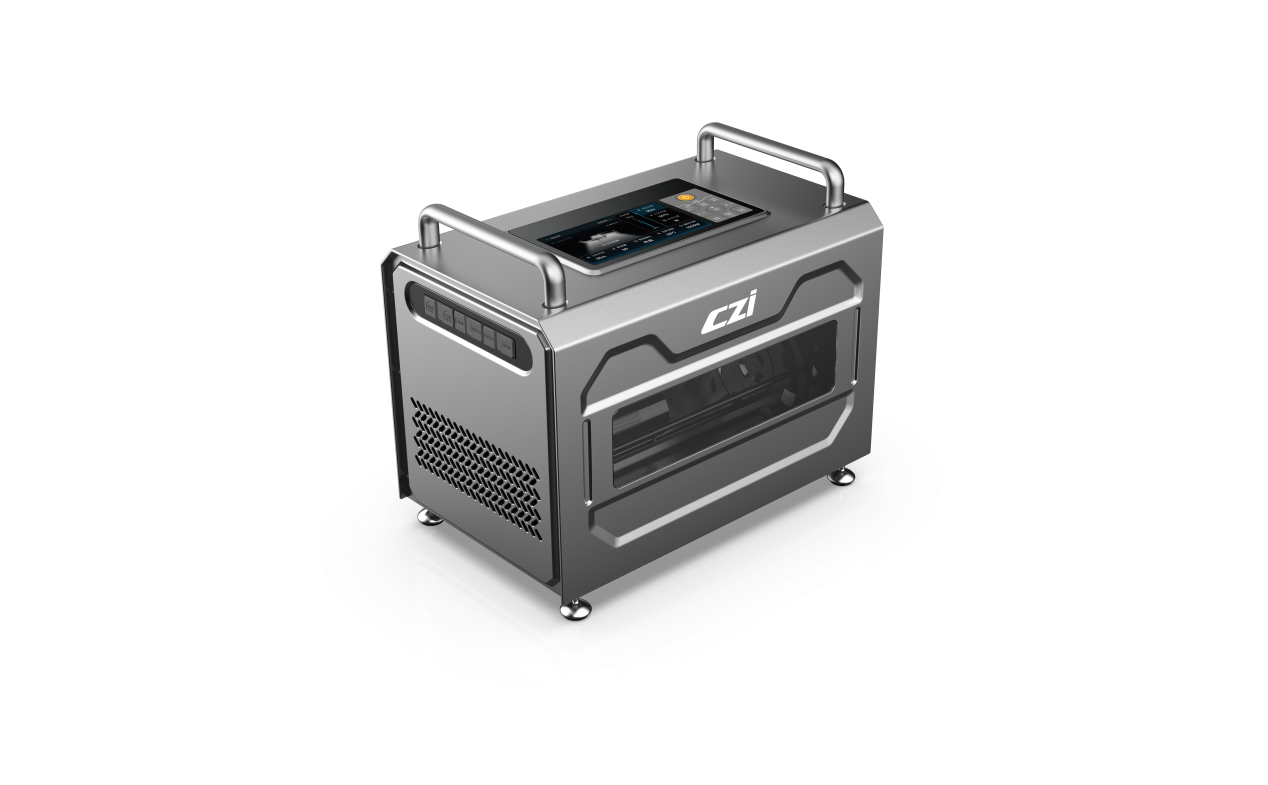

Ground Station
Dimensions
≤ 415×345×254 mm (including handle & base)
Weight
≤ 13 kg (including 110 m cable)
Input Voltage
176-264 VAC (50/60 Hz)
Output Voltage
800 V
Output Power
4.5 kw
Communication Bandwidth
100 M
Type-C Fast Charging Port
Max power: 65 W, supports PD3.0/QC protocols
Screen Size
5.5 inches
Screen Resolution
1920×1080
Backup Battery
2600 mAh, 22.2 V
Speaker Power
10 W
Cable Length
110 m
Cable Current Capacity
5 A
Cable Voltage Rating
DC 2000 V
Cable Weight
1.25 kg/100 m
Cable Tensile Strength
> 50 kg
Video Output Interfaces
HDMI, Network ports
Max Operating Ground Elevation
4000 m
Operating Temperature Range
-20℃ to 50℃ (without solar radiation)
Storage Temperature Range
-40℃ to 70℃

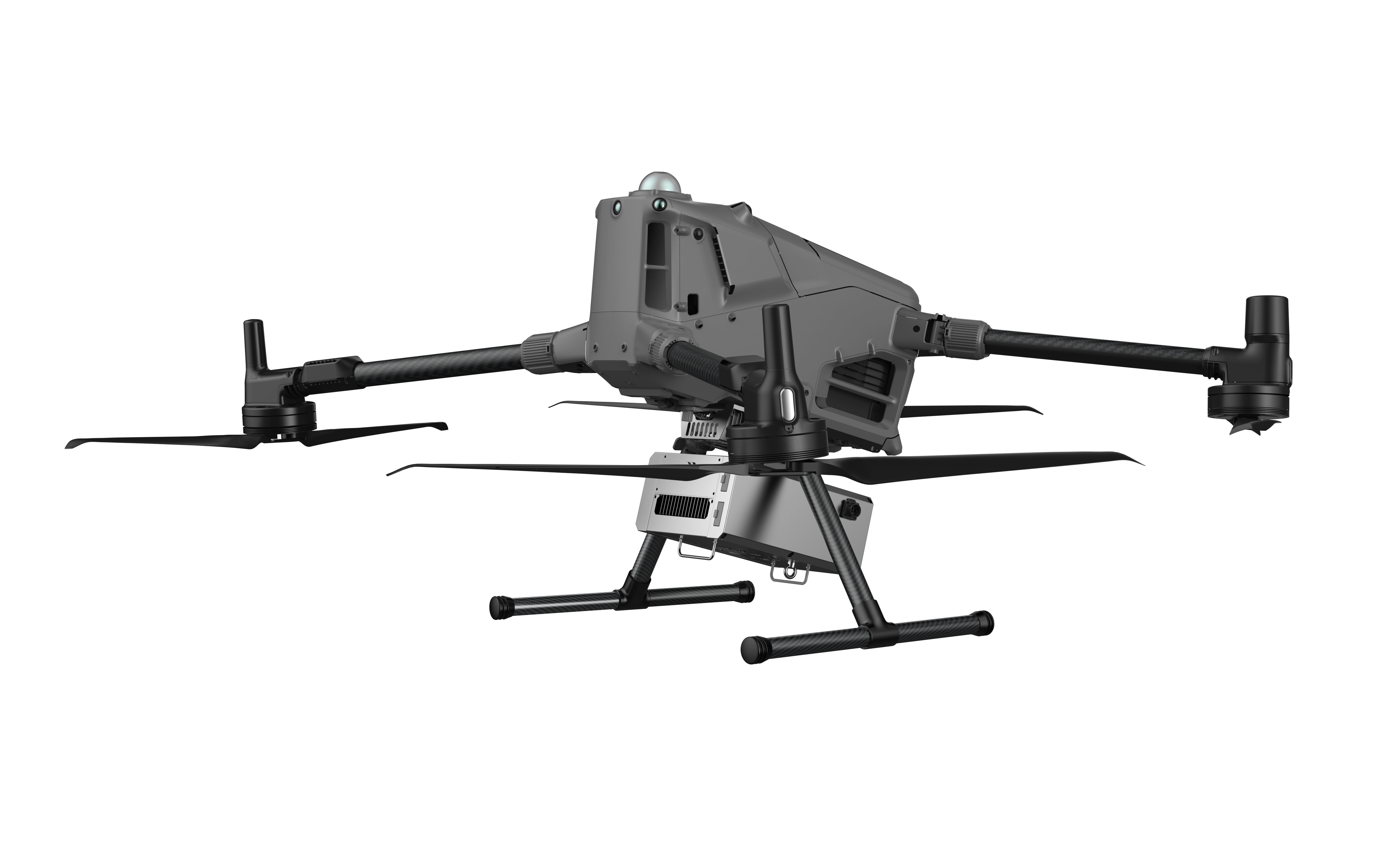

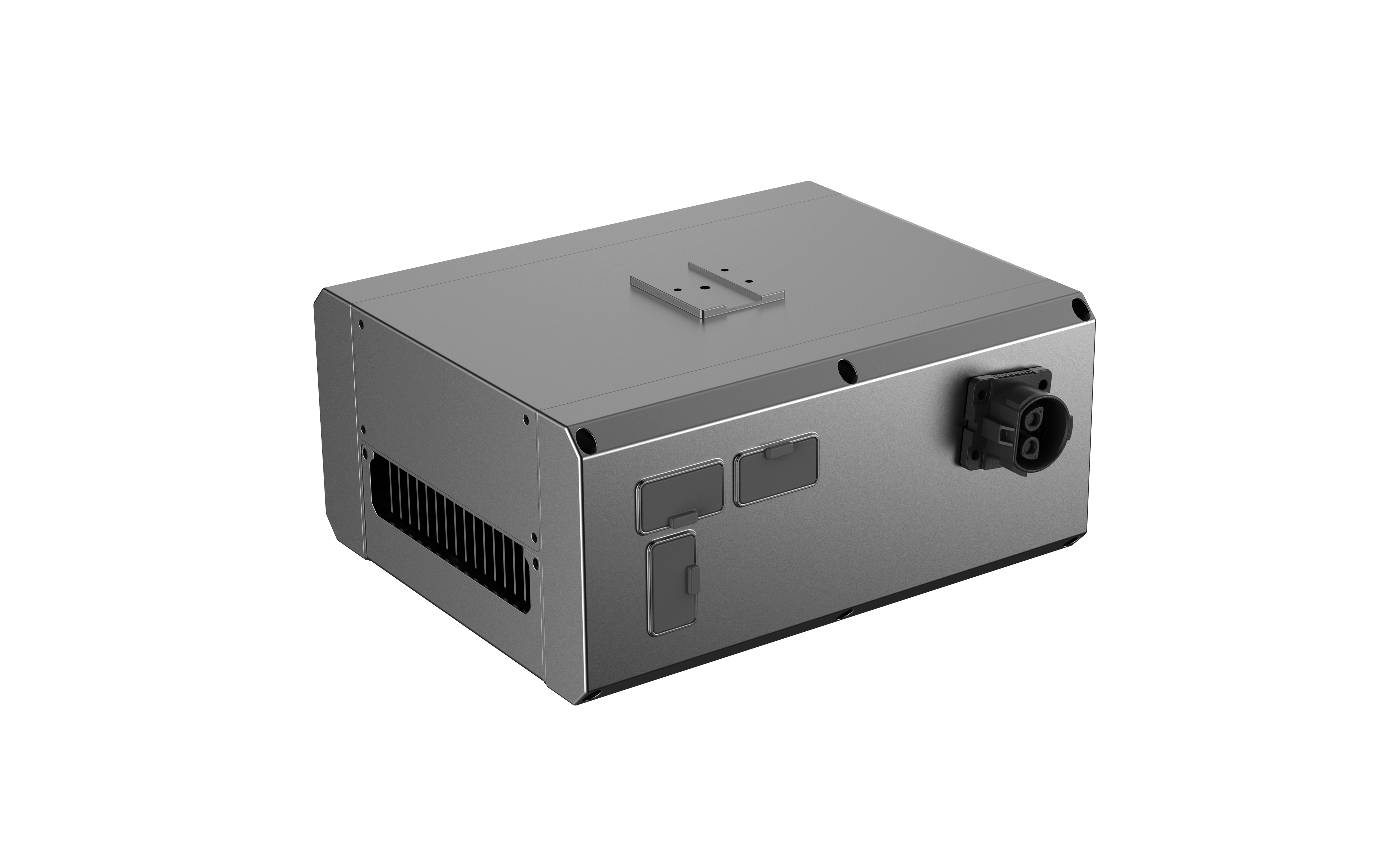

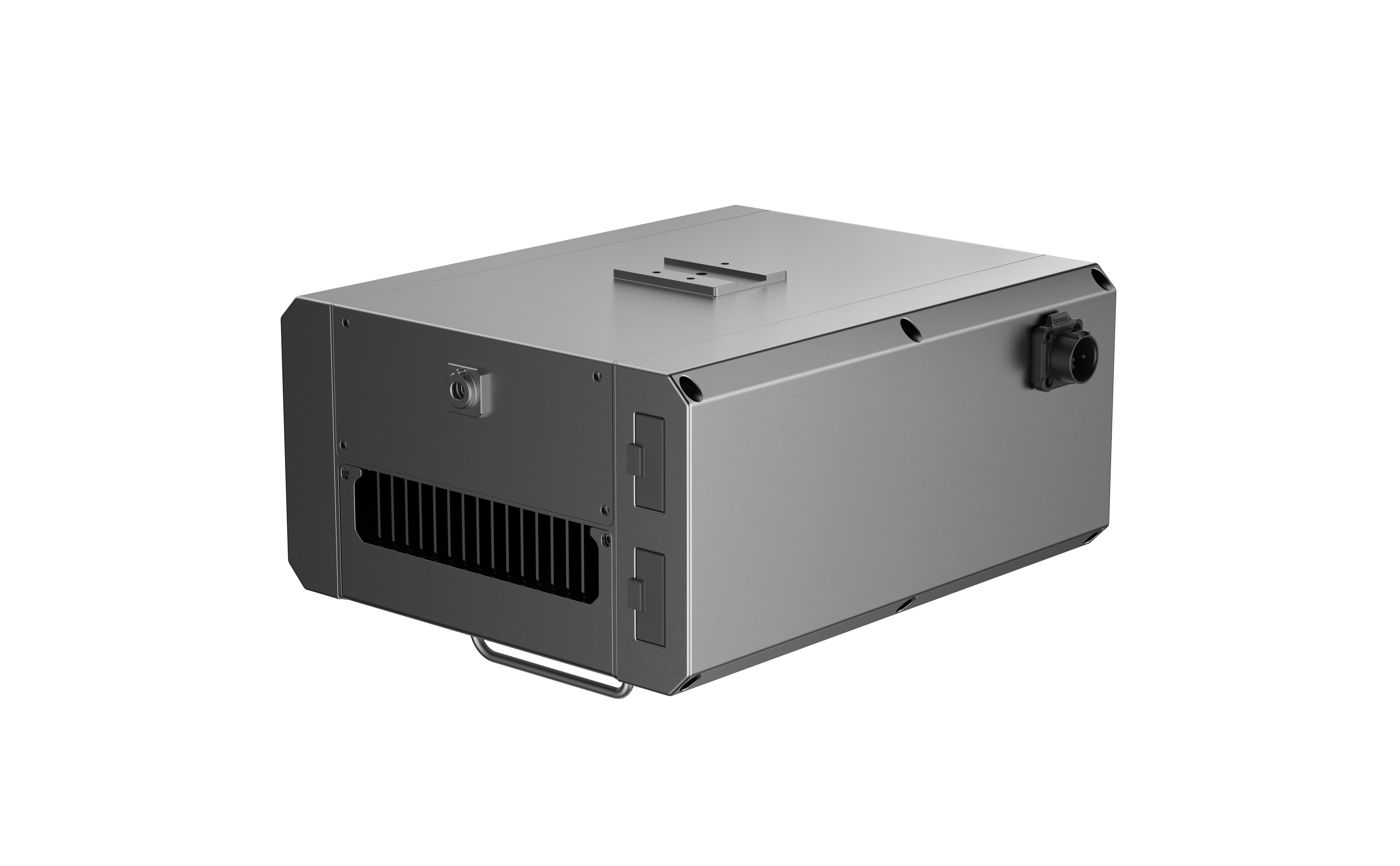

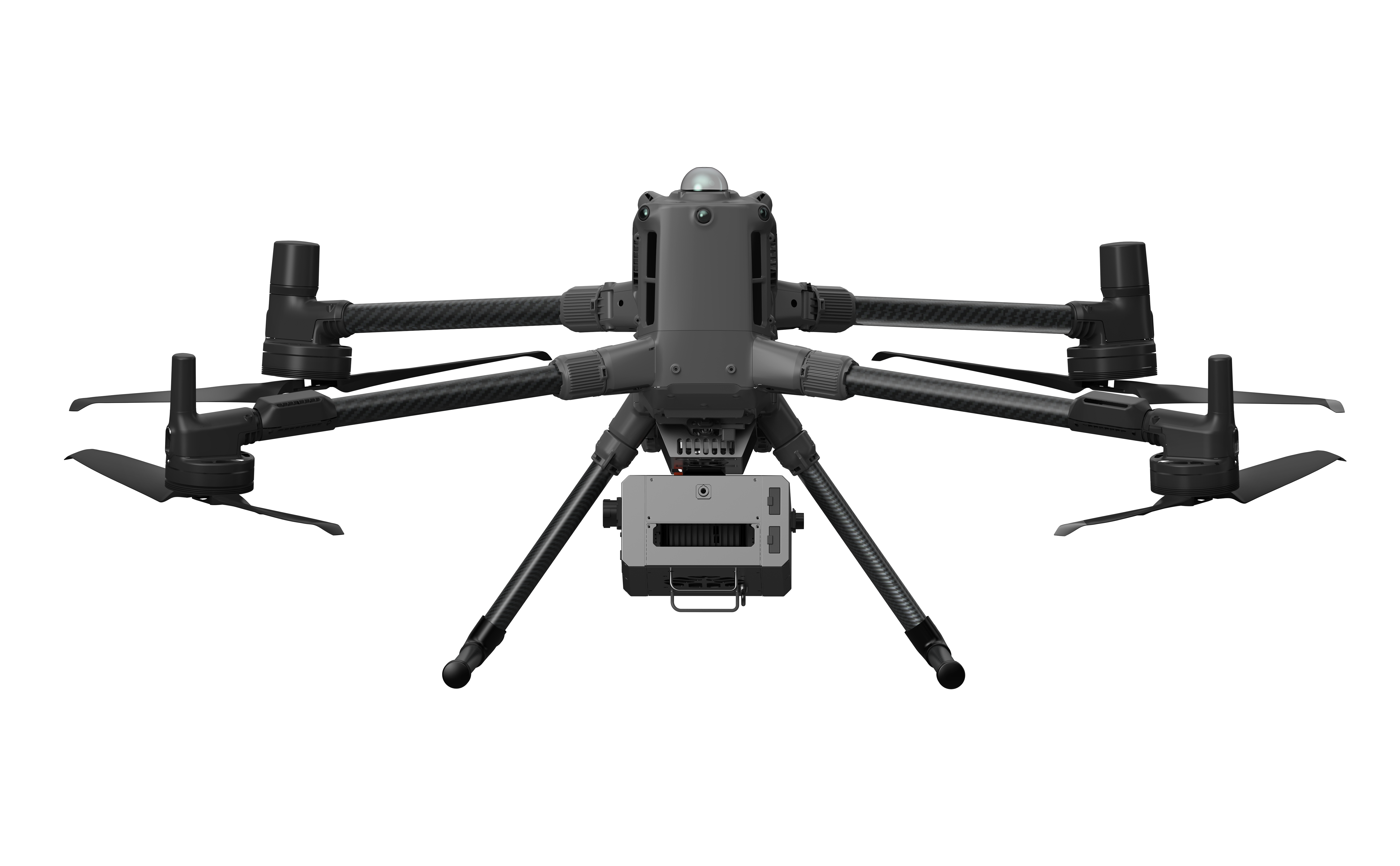

Airborne Unit
Dimensions
≤ 190×155×86 mm (main body, excluding connectors)
Weight
≤ 2 kg (main body, excluding mounting hardware)
Rated Output Power
4000 W
Output Voltage
50 V
Video Input Interface
Type-C
Max Operating Ground Elevation
4000 m
IP Rating
IP55
Operating Temperature Range
-20℃ to 50℃ (without solar radiation)
Storage Temperature Range
-40℃ to 70℃
