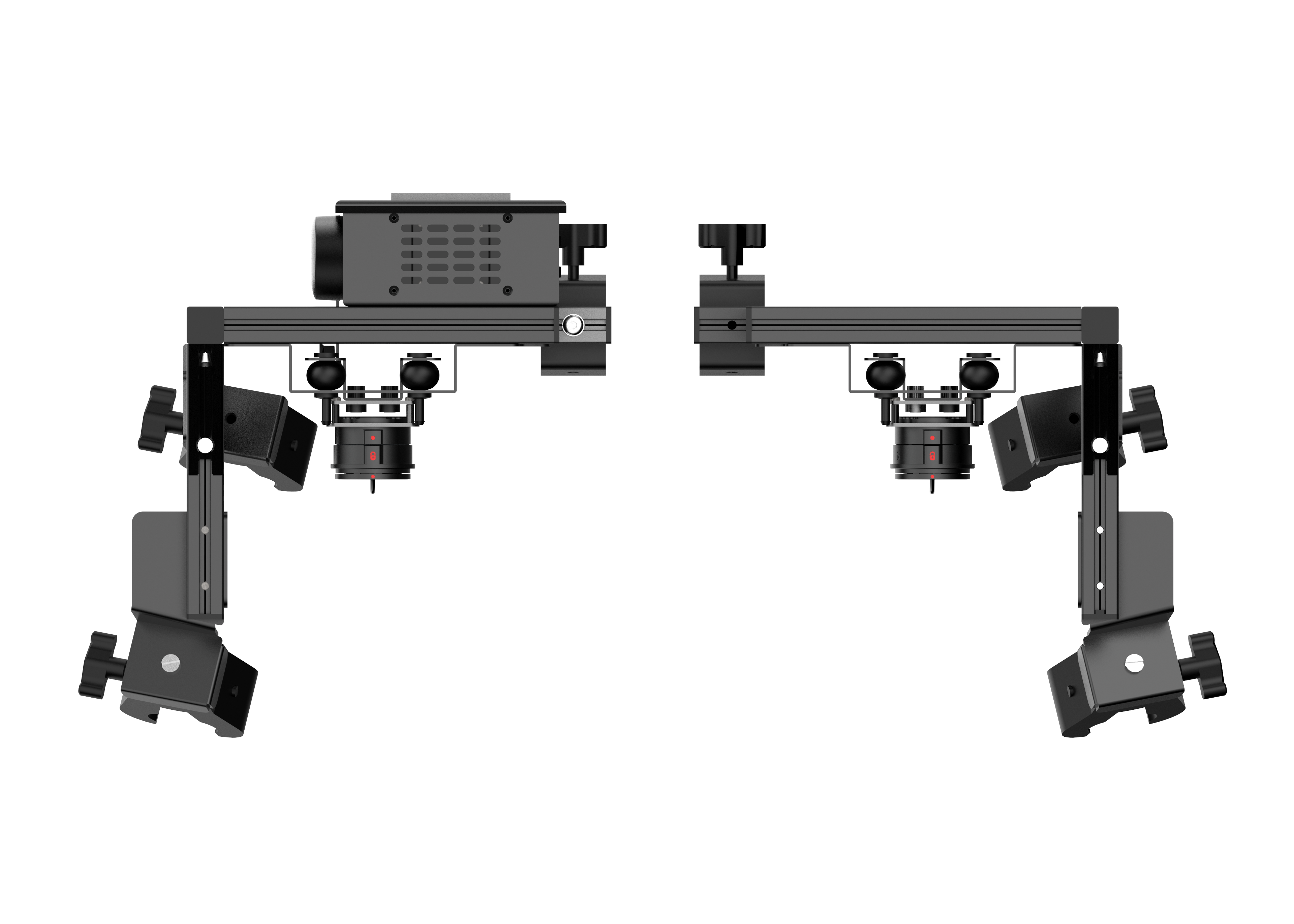

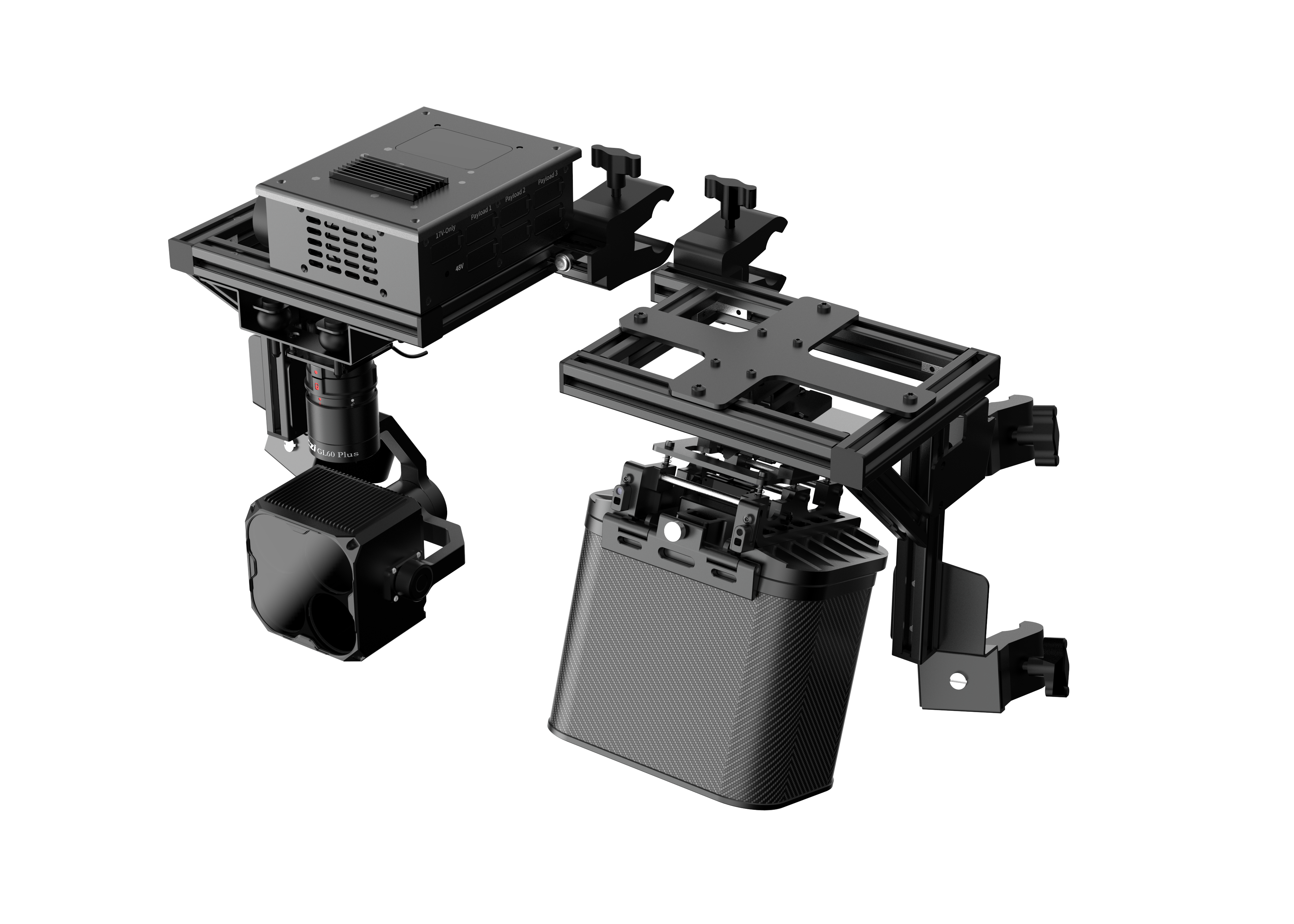

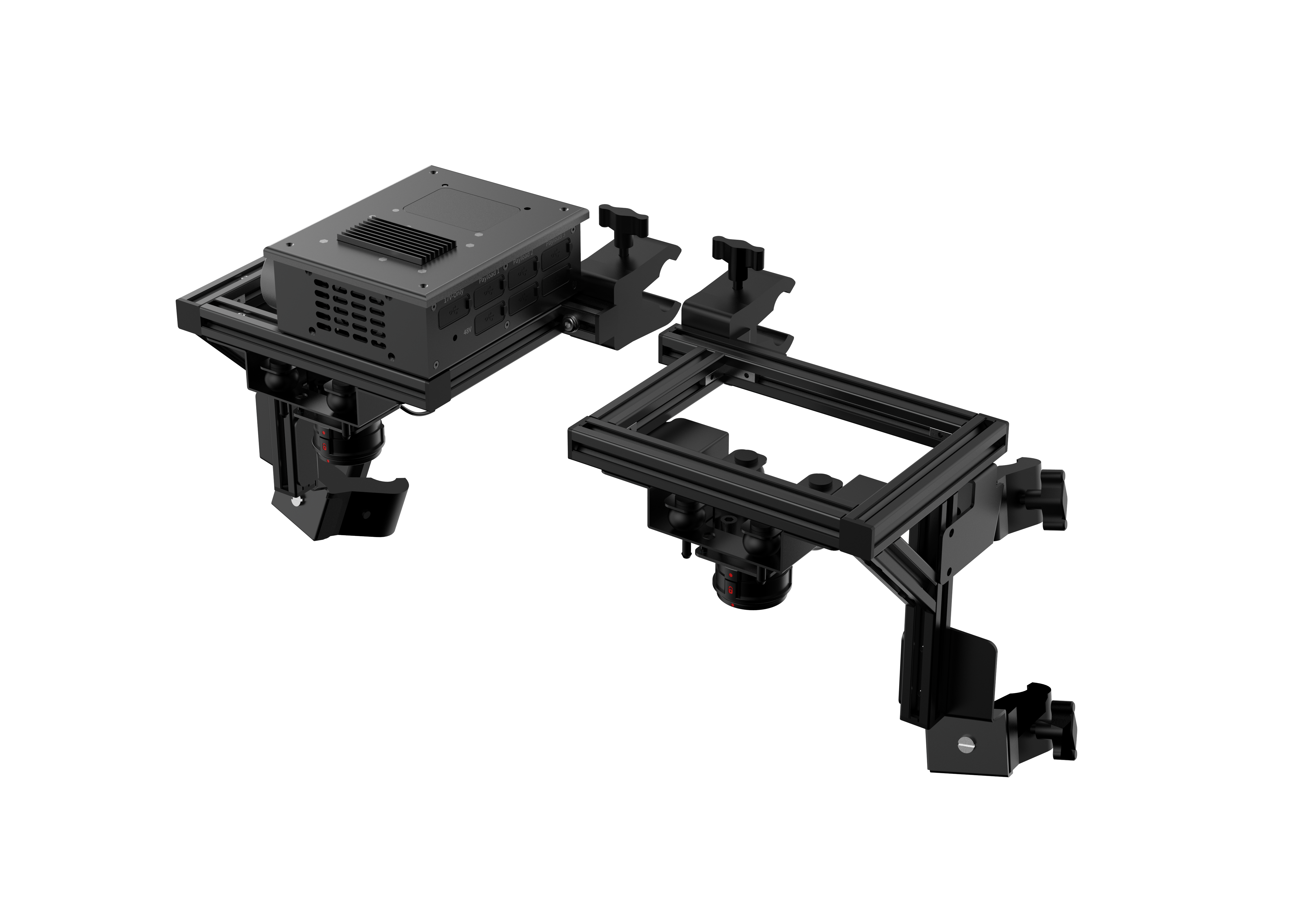

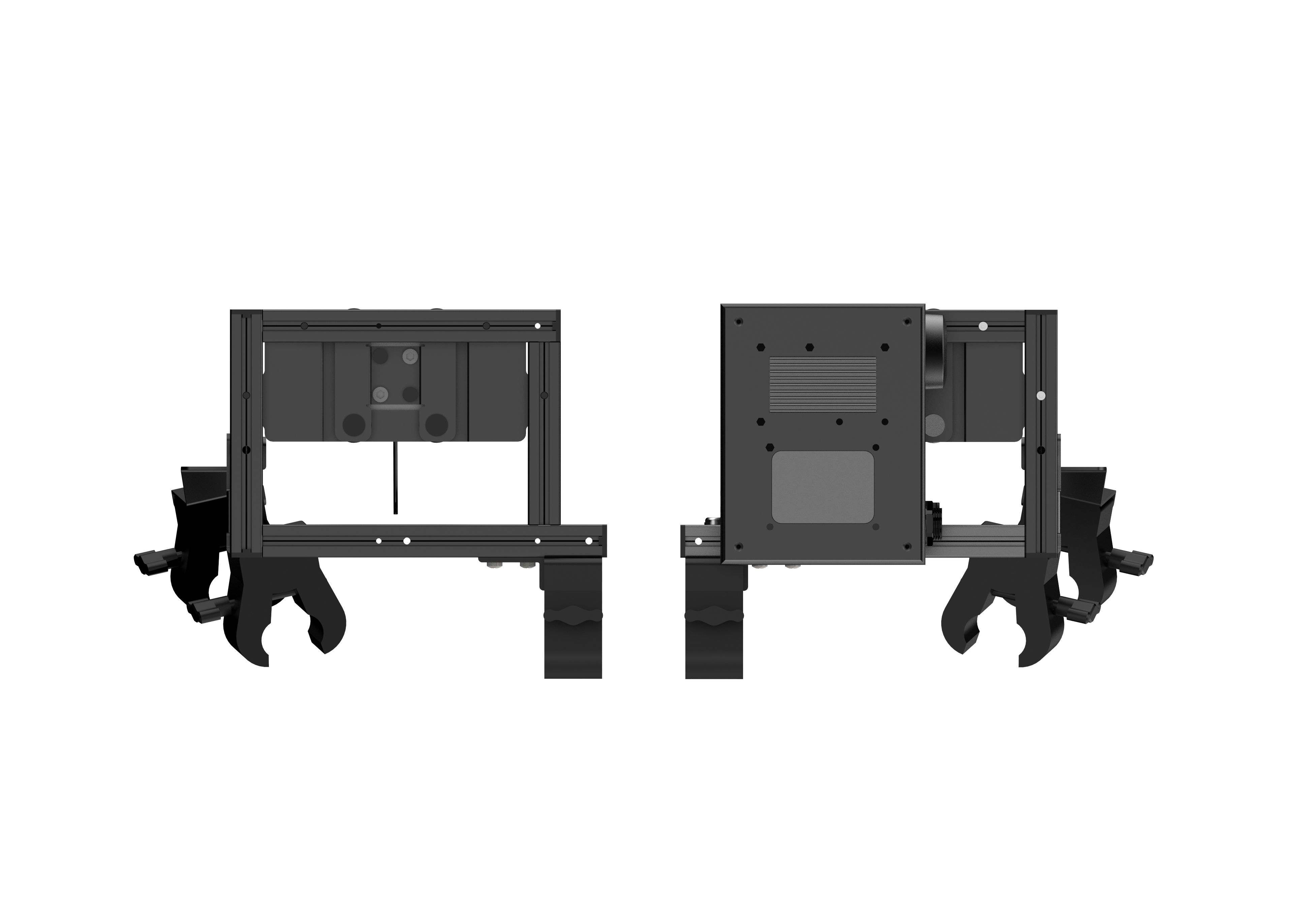

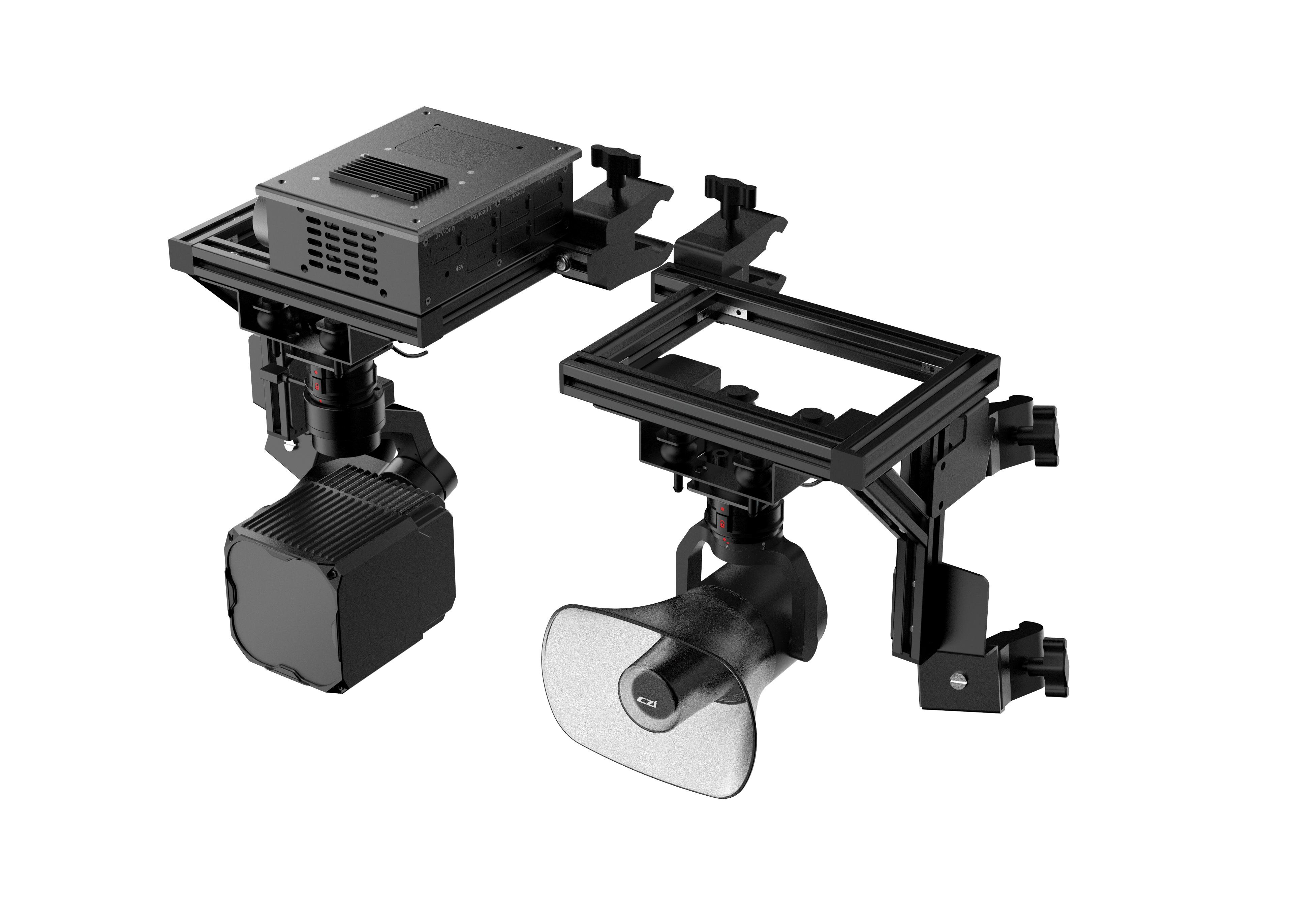

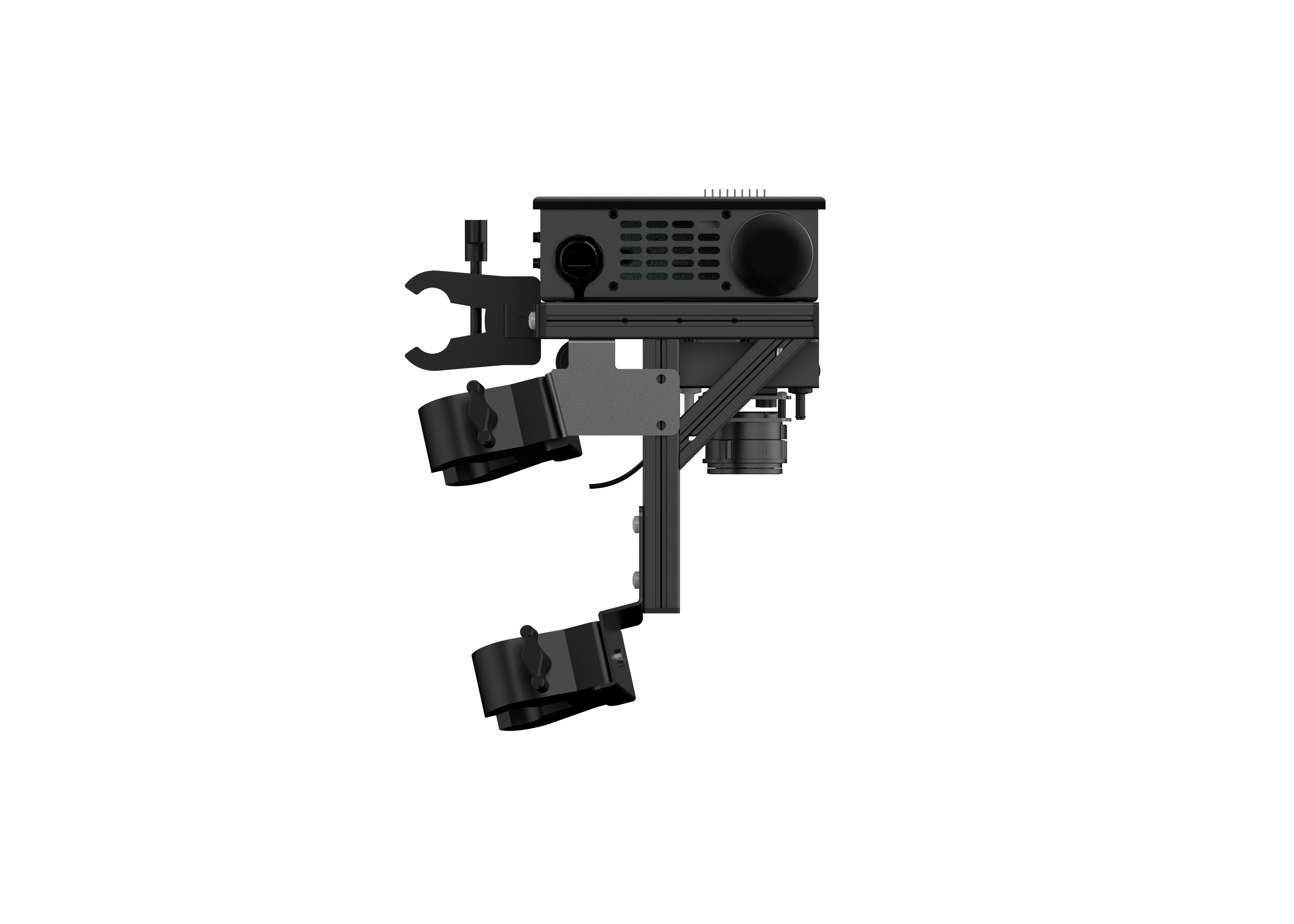

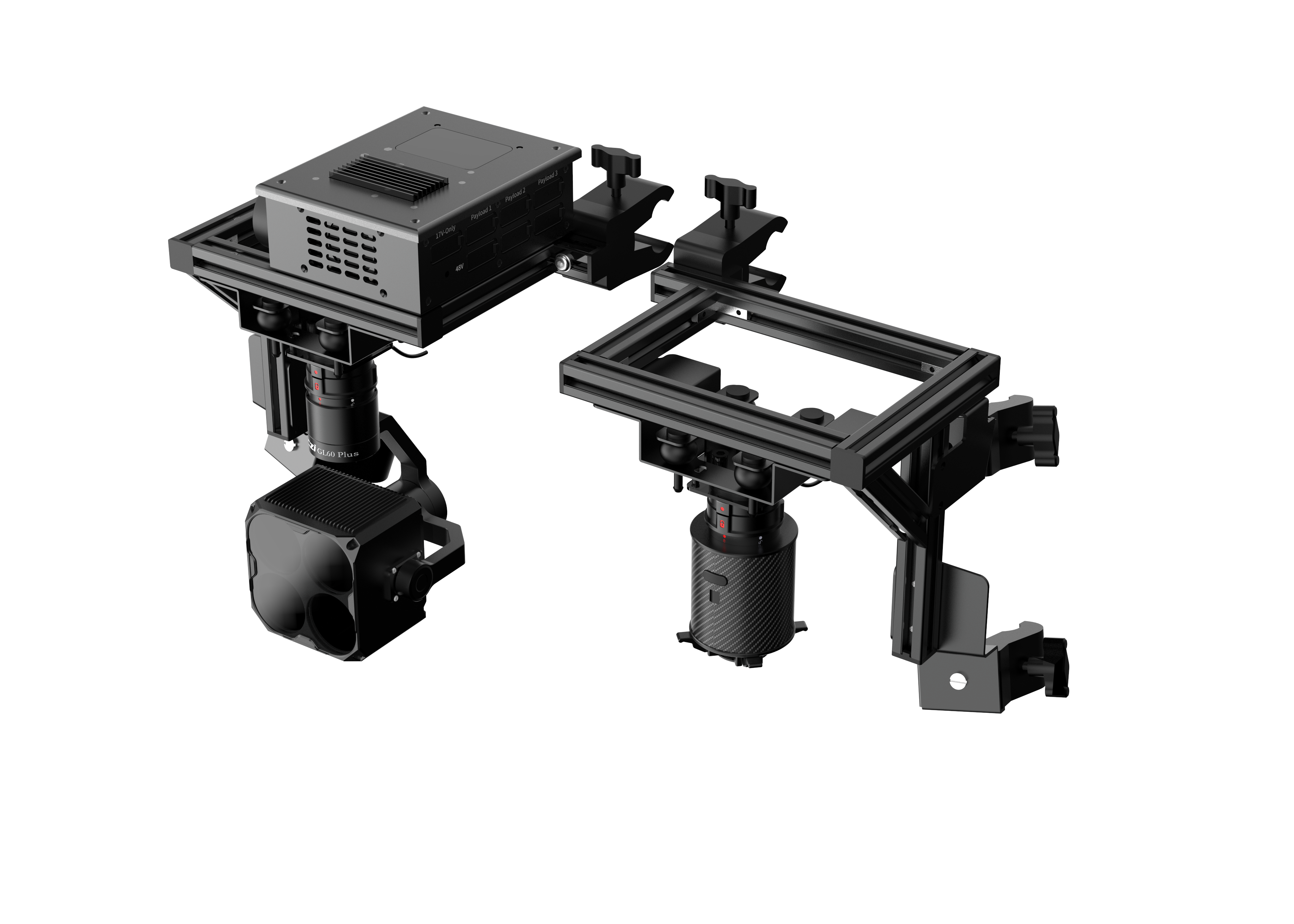

FS35 Appearance
Specs
Overall parameters
Model
FS35
Package Dimensions/mm
450*330*280
Control Box Dimensions/mm
158x137x61
Materials
Aluminum Alloy
Mounting Method
Pipe Clamp Quick Release /Adapter Ring Quick Release
Control Box Weight /g
≤850
Total Weight /kg (excluding payload)
≤3.5
Communication Link
PSDK and Built-in 4G Network
Supported Payloads
MP135,MP130 Pro, GL310, GL60 PluS, TH6, TH4, ES638
TotalInput Power/W
750 ±10%
Input Voltage /V
42~60
Total Output Power /w
500W@48V+200W@17V ±10%
LCD Display
2-inch LCD screen
IP Rating
Basic Water Resistance
Operating Environment
Temperature:-20℃ to +50℃; Humidity: 15% to 93%
Storage Environment
Temperature:-20℃ to +85℃; Humidity: 15% to 93%
